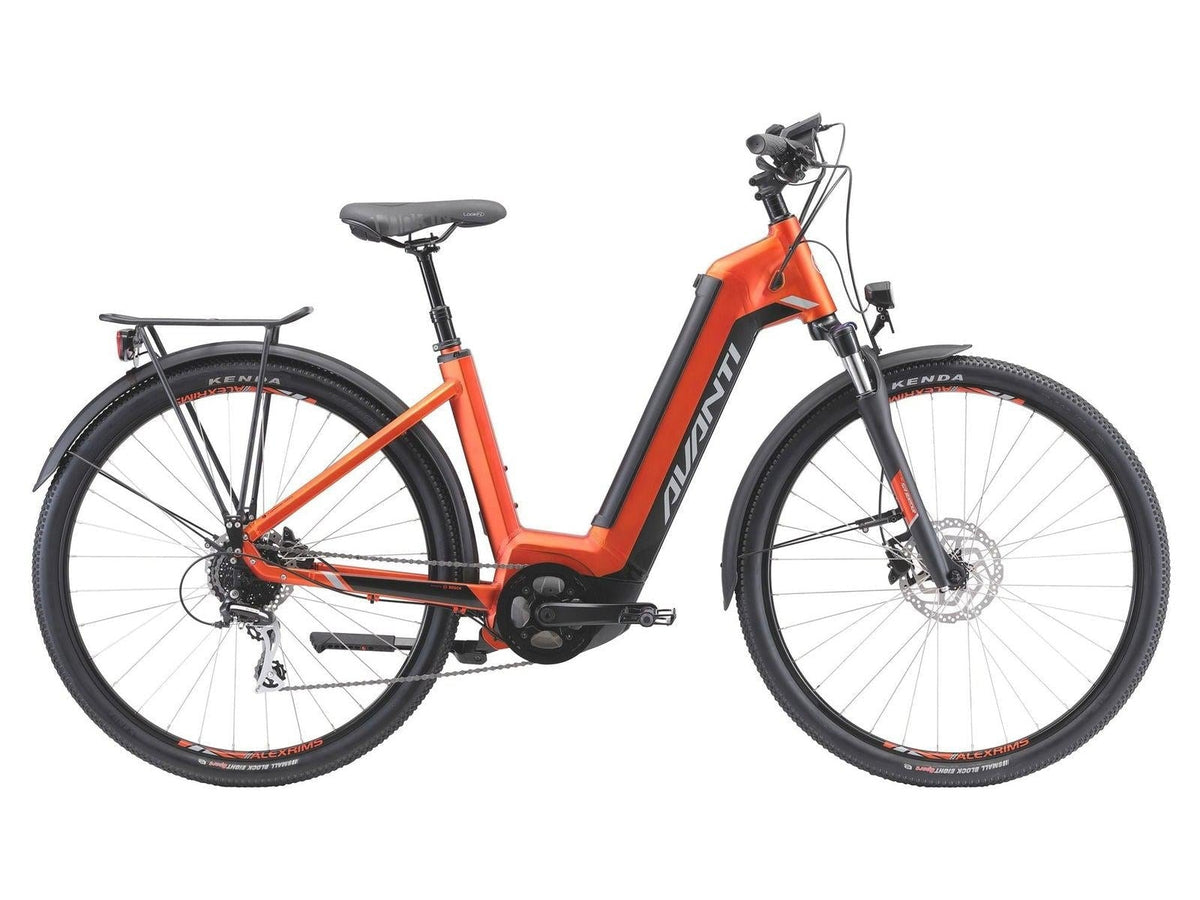

Key features of the Metro-E City 1 E-Bike
- Bosch's Active Line motor gives pedal-assist (to 25kph for AU or 32kph for NZ) to get you riding where you need to be with minimal effort
- Our ultra-low design, combined with a dropper seat post, means you can step on and off the Metro with the greatest of ease
- Fully equipped with e-bike powered light, rear rack and full fenders for any weather or light conditions
- Adjustable rise stem for a perfectly tuned handlebar height
- A suspension fork and super comfy RoyalGel saddle, make it the most comfortable E-bike 'perch' on the road or rail trail
| E-Drive System | Bosch G3 Active Line |
 |
|
| Drive Unit | Bosch G3 Active Line, 40Nm, 250W, 32kph for NZ, 25kph for AU |
|
|
| Battery | Bosch Powertube 400Wh Internal |
|
|
| Display | Bosch Intuvia |
|
|
| Charger | Bosch Std 2A Charger |
|
|
| Category | E-Bike |
|
|
| Family | Urban |
|
|
| Model | Metro-E City 1 E-Bike |
|
|
| Sizes | S/M, M/L |
|
|
| Colour | Orange |
|
|
| Frame | AL-6061 Ultra Light butted, super-low-step frame |
|
|
| Fork | Suntour NEX E-25 HLO, 60mm, 30mm stanchions, tapered steerer, hydraulic lockout |
|
|
| Rear Derailleur | Shimano Acera 8 speed |
|
|
| Shifters | Shimano Acera 8 speed |
|
|
| Crankset | Prowheel Alloy, 38T |
|
|
| Motor | SYSTEM Bosch G3 Active Line |
|
|
| Brakes | Shimano MT200 Hydraulic Disc, 180 front/160mm rear Centrelock Rotors |
|
|
| Brake Levers | Shimano MT200 Hydraulic |
|
|
| Wheelset / Rims | Alex TD26 Alloy 32H |
|
|
| Hubs | Shimano TX505 Alloy Centrelock Cassette 32H |
|
|
| Spokes | Stainless Steel with Brass Nipples |
|
|
| Cassette | Shimano HG31-8 Cassette, 8-speed 11-32T |
|
|
| Handlebar | Zero Alloy Riser, 31.8mm, 15mm degree bend |
|
|
| Handlebar Stem | Zero 31.8mm Alloy Ahead |
|
|
| Headset | Semi Integrated Aheadset |
|
|
| Grips | Ergonomic comfort |
|
|
| Pedals | Nylon platform with ball bearings |
|
|
| Tyres | Kenda Small Block 8 29 x 1.75 with AV tube and K-Shield |
|
|
| Saddle | Selle Royal Lookin comfort with RoyalGel padding |
|
|
| Seat Post | Syncros Dropper 31.8mm with internal cable routing |
|
|
| Chain | KMC E-bike chain |
|
|
| EXTRAS | Rack, Fender, Kickstand, lights |
|
|
Geometry
| S/M | M/L | ||
| 1 | Seat Tube Length (C-Top) | 440 | 480 |
|
|||
| 2 | Horizontal Top Tube Length | 595 | 600 |
|
|||
| 3 | Standover Height | 501 | 501 |
|
|||
| 4 | Head Tube Length | 170 | 170 |
|
|||
| 5 | Head Angle | 69.5 | 69.5 |
|
|||
| 6 | Seat Angle | 75 | 75 |
|
|||
| 7 | BB Drop | 70.0 | 70.0 |
|
|||
| 8 | Chainstay Length | 505 | 505 |
|
|||
| 9 | Wheelbase | 1151 | 1156 |
|
|||
| 10 | Reach | 392 | 397 |
|
|||
| 11 | Stack | 643 | 644 |
| The following are not displayed. | |||
| Stem Length | 75 | 75 | |
|
|||
| Crank Length | 165 | 165 | |
|
|||
| Wheel Diameter | 700c | 700c | |
|
|||
