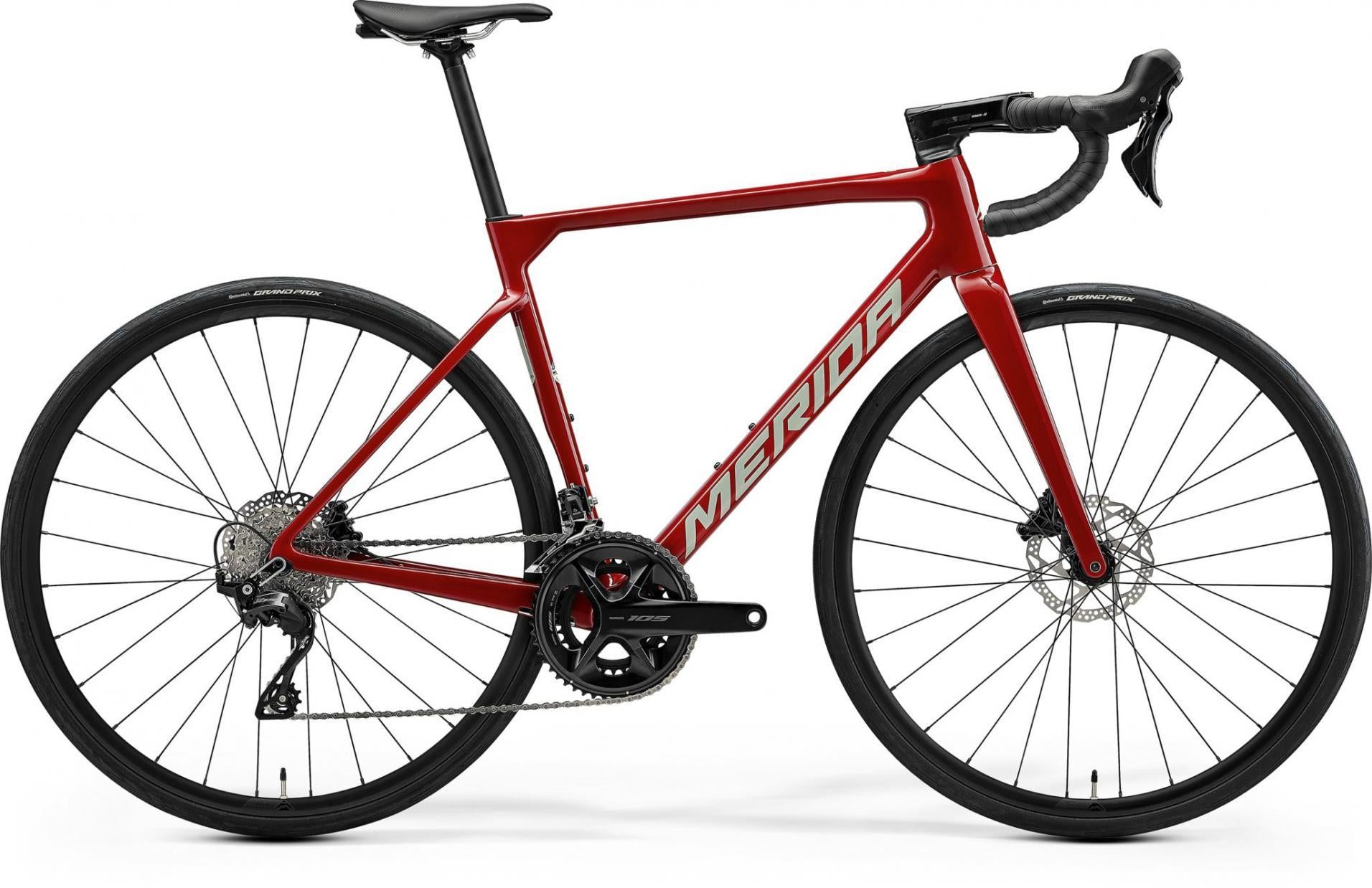

2026 SCULTURA 4000

SKU: MERR2600472

$3,999.00 NZD includes GST

SIZE

XS SM MD LG XL

COLOUR

HERITAGE RED

All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

FRAME	SCULTURA CF3 V, MAT carbon, 700x30C max. WHS, 100x12/ 142x12 AST, Pressfit 86,5,
FORK	SCULTURA CF3 disc, MAT carbon, 700x30C max. WHS,
BRAKE FRONT	Shimano 105, Hydraulic disc
BRAKE REAR	Shimano 105, Hydraulic disc
ROTOR FRONT	Shimano RT54, 160mm
ROTOR REAR	Shimano RT54, 160mm
CHAIN	Shimano M6100-12,
CRANKSET	Shimano 105 R7100, 50-34t
CRANK LENGTH	160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL,
BOTTOM BRACKET	Shimano SM-BB71-41B, Pressfit 86.5
DERAILLEUR FRONT	Shimano 105,
DERAILLEUR REAR	Shimano 105, GS
CASSETTE	Shimano 105 R7101, 11-34, 12sp,
PEDAL	,
GRIP	MERIDA ROAD Expert,
HANDLEBAR	MERIDA EXPERT SLII, MAT aluminium, (3S-XXS-XS-S), 400mm (M-L), 420mm (XL),
STEM	FSA SMR-II, MAT aluminium,-10,
STEM SIZE	90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL,
HEADSET	FSA ACR,
HUB FRONT	Shimano HB-TC500, 100x12 WHF, 28 SPH, Centerlock
HUB REAR	Shimano FH-TC500-HL, 12-142 WHR, 28 SPH, Centerlock
RIM	MERIDA EXPERT SL, 17 IWR, 22 HRI, MAT aluminium
SADDLE	MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
SEAT CLAMP	MERIDA EXPERT,
SEAT POST	MERIDA EXPERT SL, 27.2 DSP, 0 SSB, Carbon
SHIFTER FRONT	Shimano 105 disc,
SHIFTER REAR	Shimano 105 disc,
TYRE FRONT	Continental Grand Prix, 700x28C, fold,
TYRE REAR	Continental Grand Prix, 700x28C, fold,
