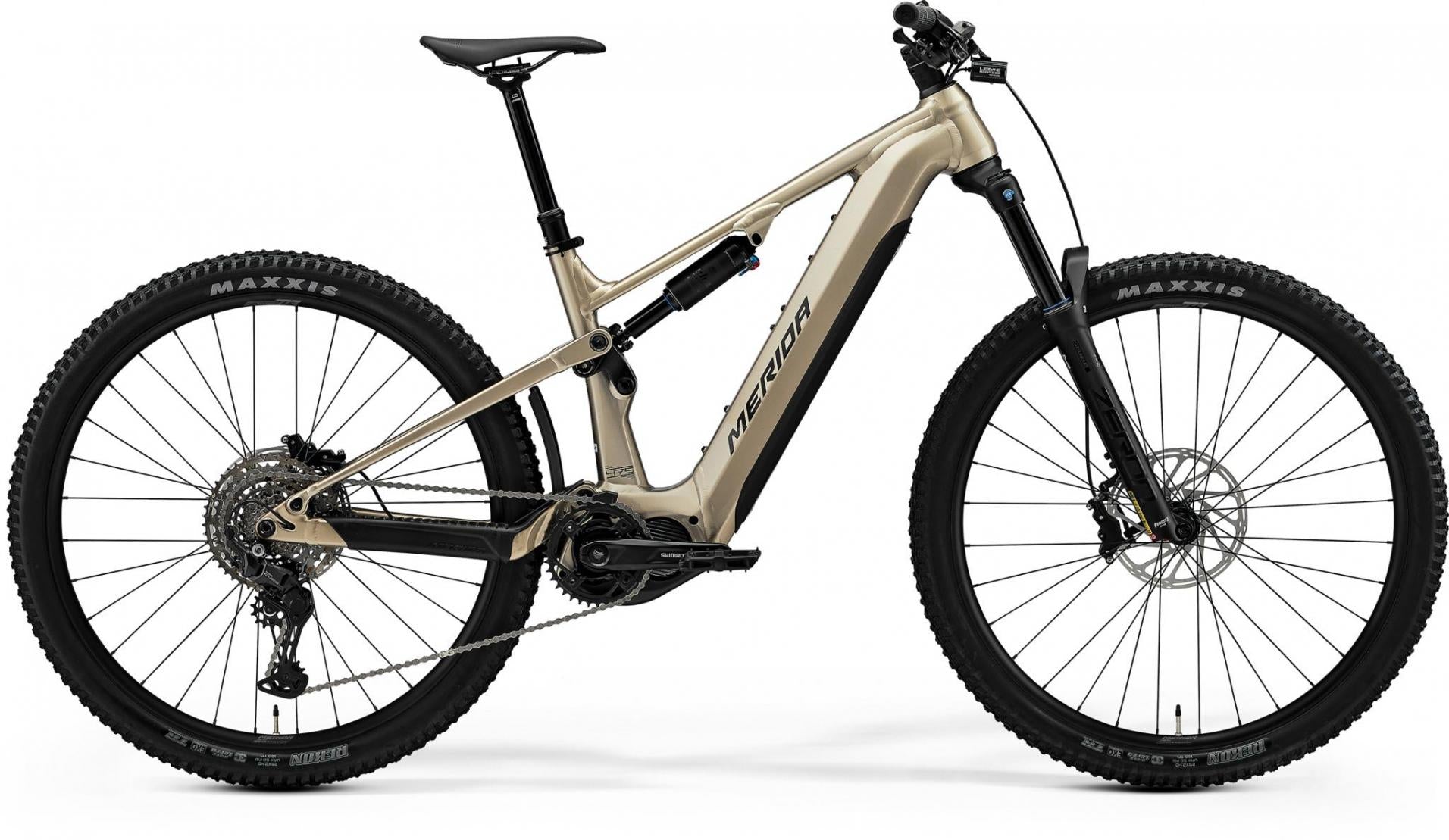

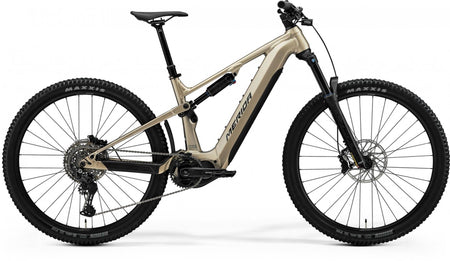

2026 EONE FORTY 475 EQ
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | eONE-FORTY LITE IV, MAT aluminium, 133 STR, 27.5x2.8" max. WHS, 148x12 AST, intube, |
| SHOCK | SR Suntour Edge Plus, platform |
| FORK | SF25-ZERON36X-BOOST, |
| BRAKE FRONT | Sram DB4 stealth, 4 piston |
| BRAKE REAR | Sram DB4 stealth, 4 piston |
| ROTOR FRONT | Sram CenterLine, 200mm |
| ROTOR REAR | Sram CenterLine, 200mm |
| CHAIN | Shimano LG500, |
| CRANKSET | FSA 1x Steel Chainring, 36t |
| CRANK LENGTH | Shimano FC-EM600, 165 mm for all sizes |
| DERAILLEUR REAR | Shimano CUES U6000 GS |
| CASSETTE | Shimano LG400, 11-48,10, |
| PEDAL | VP VPE-533, |
| GRIP | MERIDA EXPERT EC, |
| HANDLEBAR | MERIDA EXPERT eTR, 780 WHB |
| STEM | MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount, |
| STEM SIZE | 40 mm all sizes, |
| HEADSET | Acros ICR MERIDA EXTERNAL neck w/ Blocklock, |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29", |
| SADDLE | MERIDA COMP SL, V-mount, incl. MERIDA minitool, |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel |
| SHIFTER FRONT | Shimano SL -MT500-IL, |
| SHIFTER REAR | Shimano CUES U6000-10, |
| TYRE FRONT | MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra, |
| TYRE REAR | MAXXIS REKON, 29x2.4", fold, TR 3C EXO MaxxTerra, |
| LIGHT FRONT | Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount |
| LIGHT REAR | Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier, |
| DRIVE UNIT | Shimano EP801, 85Nm |
| BATTERY | Shimano BT-EN817, 712Wh |
| DISPLAY | Shimano SC-EN600, |
