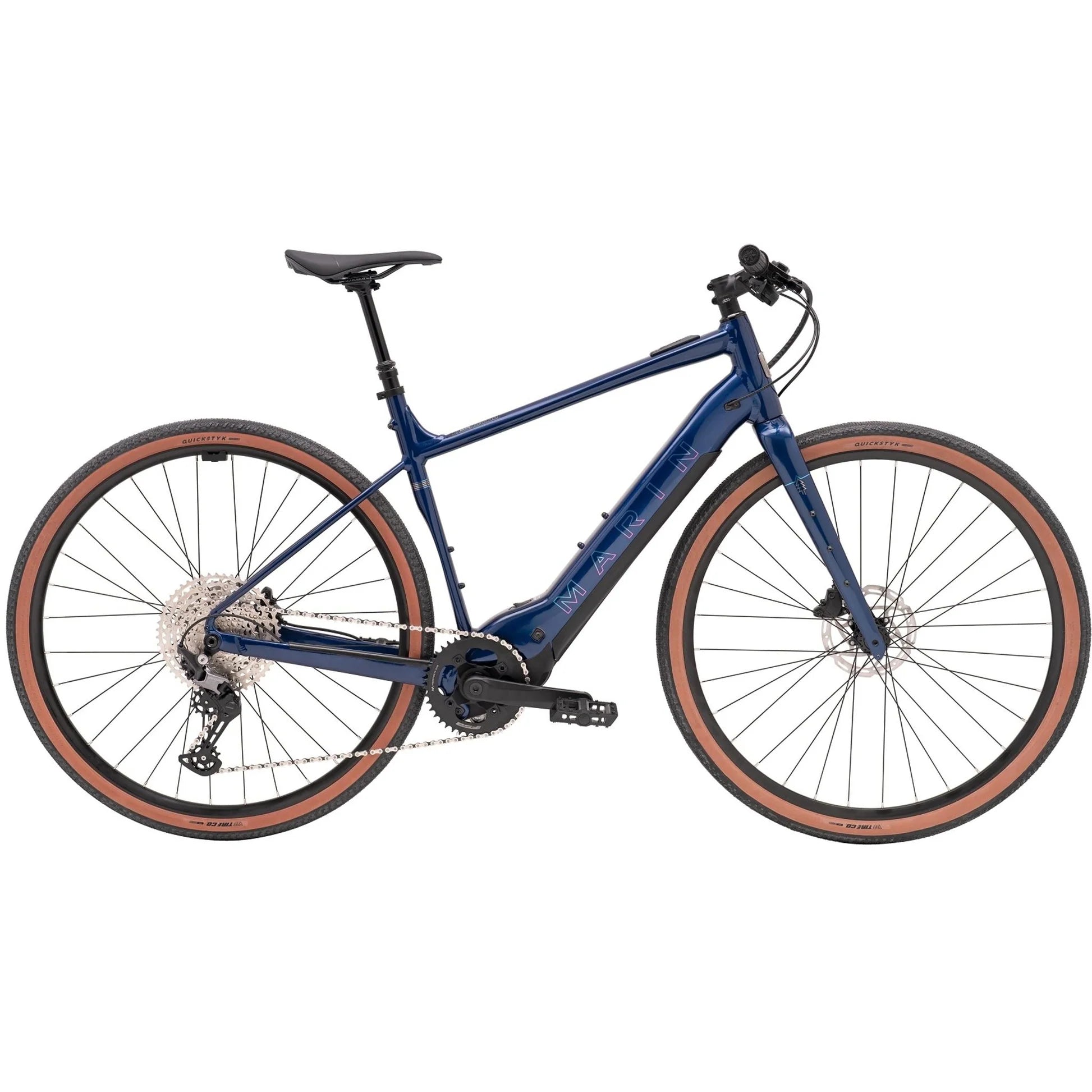

2026 DSX E
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | All-New Series 4 DSX, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| FORK | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| RIM | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible |
| HUB REAR | Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| HUB FRONT | Forged Aluminum Alloy, 100x12mm, Disc, 32H |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible |
| DERAILLEUR REAR | Shimano Deore, RDM6100, 12-Speed |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano Deore, SLM6100, 12-Speed |
| CRANKSET | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| MOTOR | Bosch SX, 250W, 55Nm, Class 1 (45Km/h) |
| BOTTOM BRACKET | KMC X12 |
| CHAIN | KMC X12 |
| CASSETTE | Shimano CSM6100, 10-51T |
| BRAKES FRONT | Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor |
| BRAKES REAR | Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor |
| BRAKE LEVERS | Tektro Clean Cockpit |
| HANDLEBAR | Marin MiniRiser |
| STEM | Marin Alloy |
| GRIPS | Marin Grizzly Grip |
| HEADSET | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| SEATPOST | TranzX YSP38J, Alloy Remote, Size S 70mm, All Other Sizes 100mm Travel, |
| SADDLE | Marin DSX |
| PEDALS | Flats |
| KICKSTAND | Removable kickstand mount |
| LIGHTS | - |
| BATTERY | Bosch Compact Power Tube 400, 400Wh |
| HMI | Bosch MiniRemote, Bluetooth |
| DISPLAY | Bosch Purion 400 |
| RANGE | 14-85 miles / 22-137km |
| CHARGE TIME | 3.5 Hours |
| CHARGER | Bosch 2A |
| APP | Bosch eBike Flow App |
| DISPLAY | Bosch Purion 400 |
