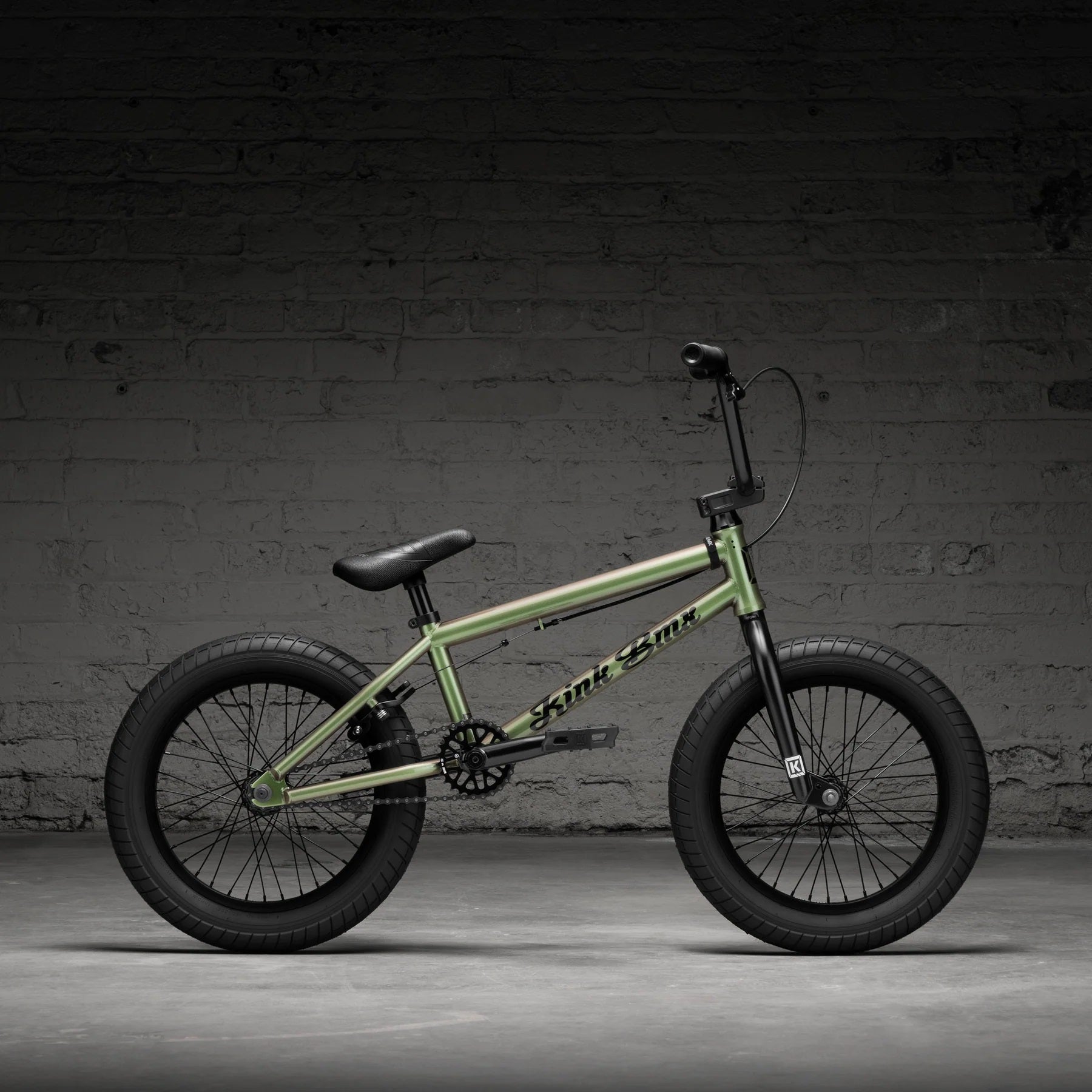

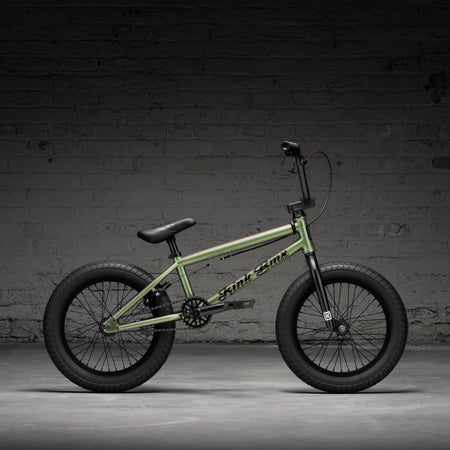

2026 CARVE 16'
Couldn't load pickup availability
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | Kink Carve 100% Hi-Ten Steel |
| FORK | Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs |
| BARS | Kink T700 7" |
| GRIPS | Mission Helix Mini |
| STEM | Mission Topload 40mm |
| HEADSET | Mission Sealed Integrated (41.8 x 45) |
| BRAKE LEVER | Mission Mini |
| BRAKE CABLE | Mission L1 Linear |
| BRAKES | Mission Cease V2 |
| CRANKS | Mission Triumph 3pc Tubular Chromoly 140mm 8 Spline |
| BOTTOM BRACKET | Sealed Mid 19mm |
| PEGS | N/A |
| PEDALS | Kink Hemlock |
| CHAIN | Mission 410 |
| SPROCKET | Mission Rank 25T |
| SEAT | Mission Cypress Mini Combo |
| SEAT POST | Mission Combo Steel Post |
| SEAT CLAMP | Mission Slim Clamp |
| FRONT HUB | Mission Covert Unsealed 3/8 Axle |
| REAR HUB | Mission Function Semi-Sealed Cassette 14mm |
| DRIVER | 9T |
| RIMS | Mission X7 |
| TIRES | Mission Tracker 16x2.4" |
| WEIGHT | 10.26kg |
| TOPTUBE LENGTH | 16.5" |
| CHAINSTAY LENGTH | 11.25" |
| HEADTUBE ANGLE | 74.5° |
| SEATTUBE ANGLE | 71° |
| STANDOVER HEIGHT | 6.75" |
| BOTTOM BRACKET HEIGHT | 9.75" |
| FORK OFFSET | 32mm |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
