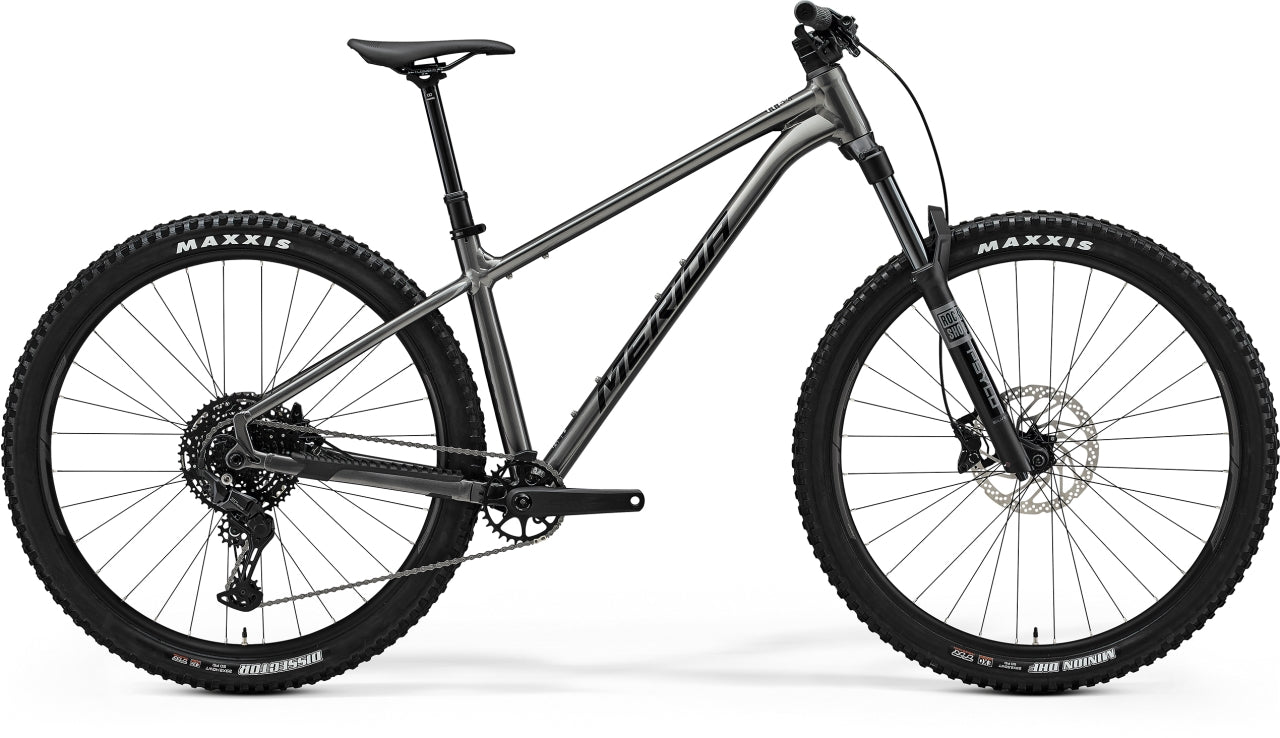

2026 BIG TRAIL 500

SKU: MEHP2600012
(0)
$2,499.00 NZD includes GST
SIZE
COLOUR
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

Specifications

Please note - specifications subject to change without prior notice.

FRAME BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORK Rock Shox Psylo Silver RC; Air; 140 STR; platform
BRAKE FRONT Sram DB4; 4 piston
BRAKE REAR Sram DB4; 4 piston
ROTOR FRONT Sram CenterLine; 200mm
ROTOR REAR Sram CenterLine; 180mm
CHAIN KMC xGlide
CHAINWHEEL MERIDA Expert TR II; 32 ATC
CRANKSET 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG
BOTTOM BRACKET
DERAILLEUR FRONT
DERAILLEUR REAR Shimano CUES U6000; GS
CASSETTE Shimano LG300; 11-48 ATC; 10 GER
PEDAL
GRIP MERIDA COMP TR
HANDLEBAR MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
STEM SIZE 40 mm
HEAD SET Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
HUB FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB REAR Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT
SHIFTER FRONT Shimano SL-MT500-L
SHIFTER REAR Shimano CUES U6000
TYRE FRONT Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual
TYRE REAR Maxxis Dissector; 29x2.4"; fold; TR EXO Dual
