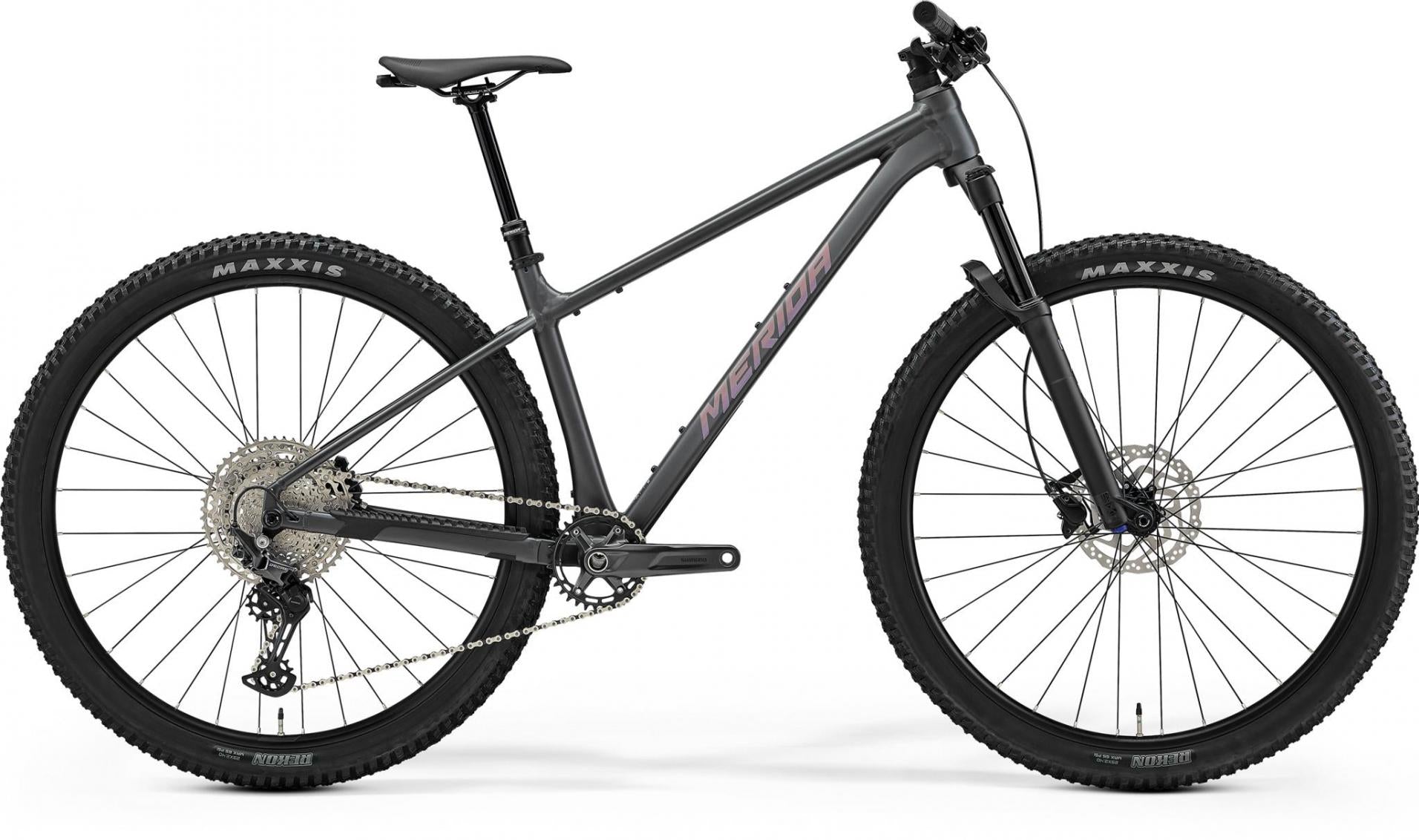

2026 BIG NINE TR 700
Couldn't load pickup availability
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | BIG.NINE TR LITE III, MAT aluminium, 29x2.4" max. WHS, 148x12 AST, BSA BBR, |
| SHOCK | 0, |
| FORK | Manitou Machete Comp, Air, 120 STR, Tapered, 44 mm fork offset, |
| BRAKE FRONT | Shimano MT200, 2 piston |
| BRAKE REAR | Shimano MT200, 2 piston |
| ROTOR FRONT | Shimano RT10, 180mm |
| ROTOR REAR | Shimano RT10, 180mm |
| CHAIN | KMC X12, |
| CRANKSET | Shimano Deore MT512, 32t |
| CRANK LENGTH | 170 mm for all sizes, |
| BB SET | Shimano BB-MT-501, 24mm |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano Deore M6100, SGS |
| CASSETTE | Shimano Deore M6100, 10-51t, 12sp |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA EXPERT CC, MAT aluminium, 750 WHB, 10 RHB |
| STEM | MERIDA TEAM CC III, MAT aluminium, 31.8 DSH, -6 ASD |
| STEM SIZE | 60mm, |
| HEADSET | Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA COMP CC II, 25 IWR, MAT aluminium, tubeless ready |
| SADDLE | MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA COMP TR, 30.9 DSP, 0 SSB, S: 125mm travel - M/L: 150mm travel - XL/XXL 175mm travel |
| SHIFTER FRONT | Shimano SL-MT500-IL, |
| SHIFTER REAR | Shimano Deore M6100, |
| TYRE FRONT | Maxxis Rekon, 29x2.4", wire, |
| TYRE REAR | Maxxis Rekon, 29x2.4", wire, |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
