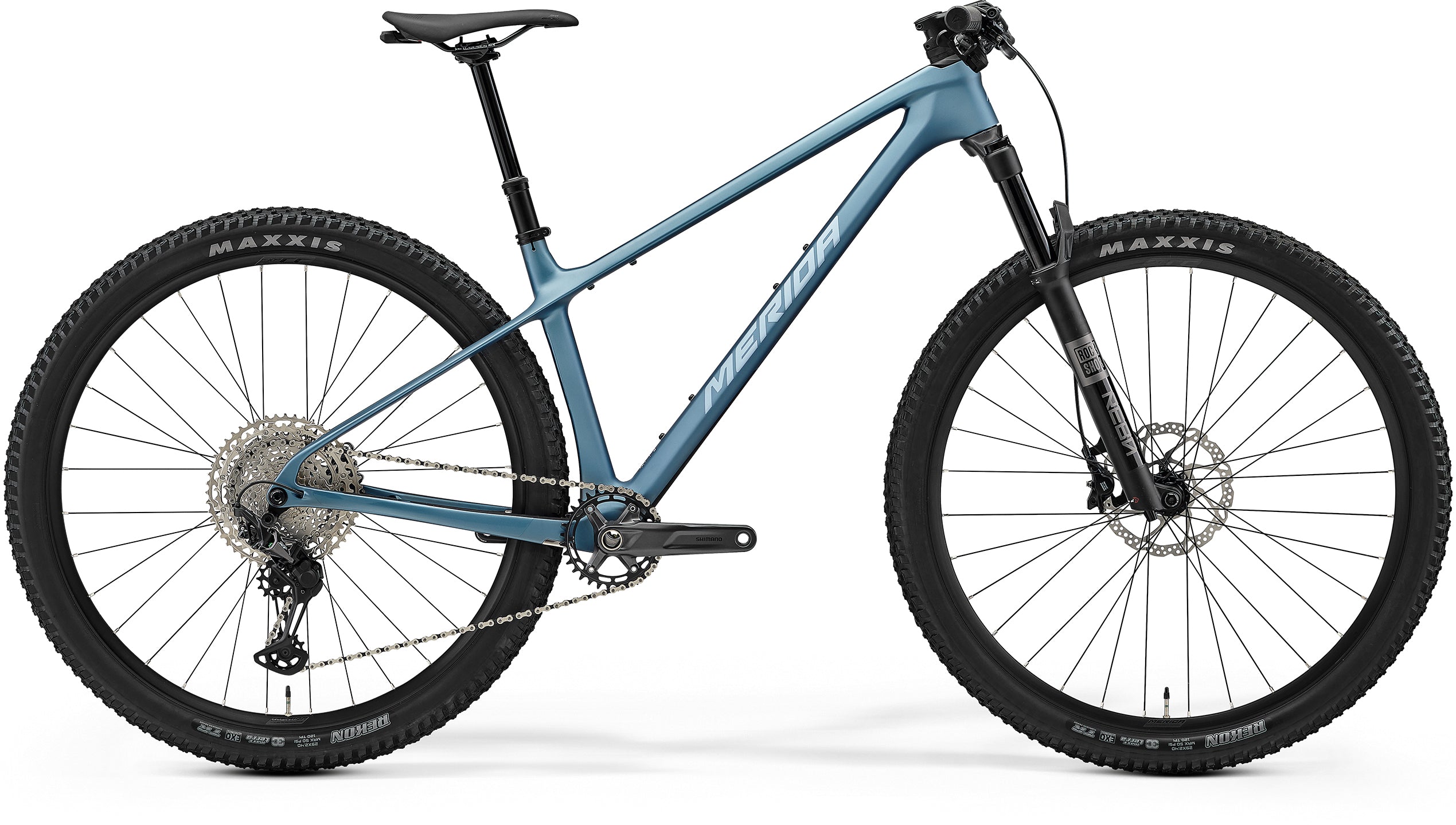

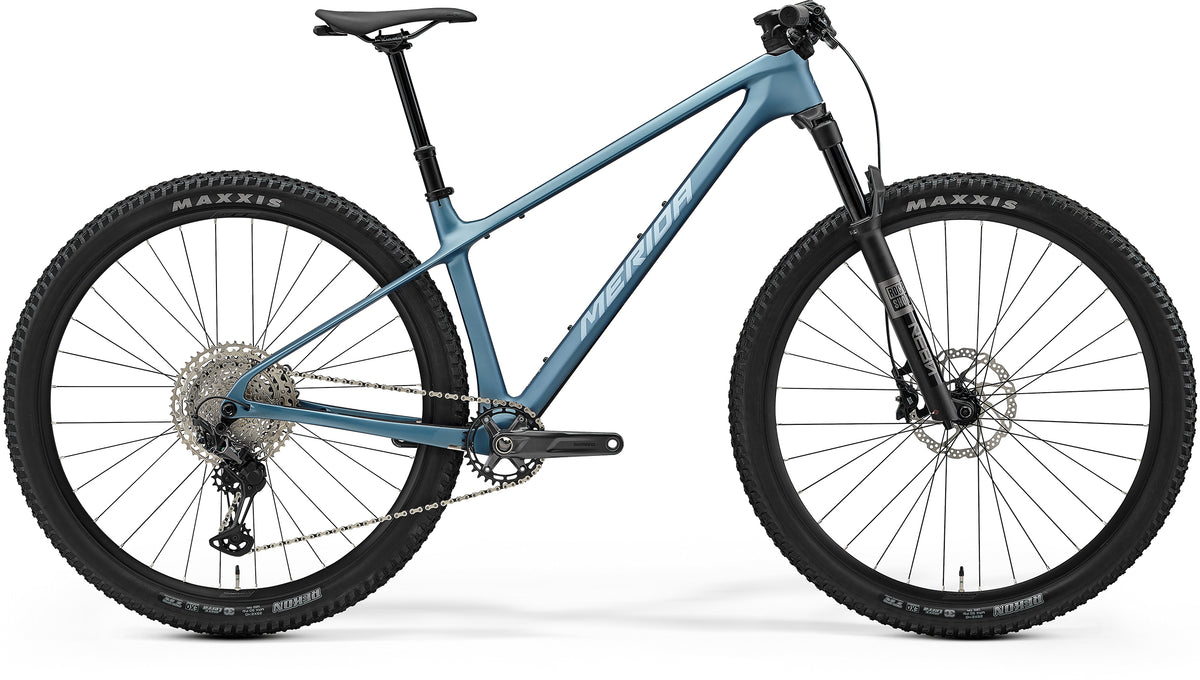

2026 BIG NINE TR 5000
Couldn't load pickup availability
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | BIG.NINE TR CF3 III, MAT carbon, 29x2.4" max WHS, 148x12 AST, BSA BBR, |
| SHOCK | 0, |
| FORK | Rock Shox Reba RL, Air, 120 STR, Tapered, 44 mm fork offset, |
| BRAKE FRONT | Shimano SLX M7100, 2 piston |
| BRAKE REAR | Shimano SLX M7100, 2 piston |
| ROTOR FRONT | Shimano RT54, 180mm |
| ROTOR REAR | Shimano RT54, 160mm |
| CHAIN | KMC X12, |
| CRANKSET | Shimano Deore MT512, 32t |
| CRANK LENGTH | 170 mm for all sizes, |
| BB SET | Shimano BB-MT-501, 24mm |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano XT, SGS |
| CASSETTE | Shimano Deore M6100, 10-51t, 12sp |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA EXPERT CC, MAT aluminium, 760 WHB, flat |
| STEM | MERIDA TEAM CC III, MAT aluminium, 31.8 DSH, -6 ASD, incl. MERIDA SMART MOUNT, |
| STEM SIZE | 60mm, |
| HEADSET | Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA EXPERT CC II, 25 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL, 25% recycled material, V-mount, |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA TEAM TR SL, 30.9 DSP, 0 SSB, S/M: 150mm travel - L/XL/XXL: 170mm travel |
| SHIFTER FRONT | JD-FL lever, |
| SHIFTER REAR | Shimano Deore M6100, |
| TYRE FRONT | Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO, |
| TYRE REAR | Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO, |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
