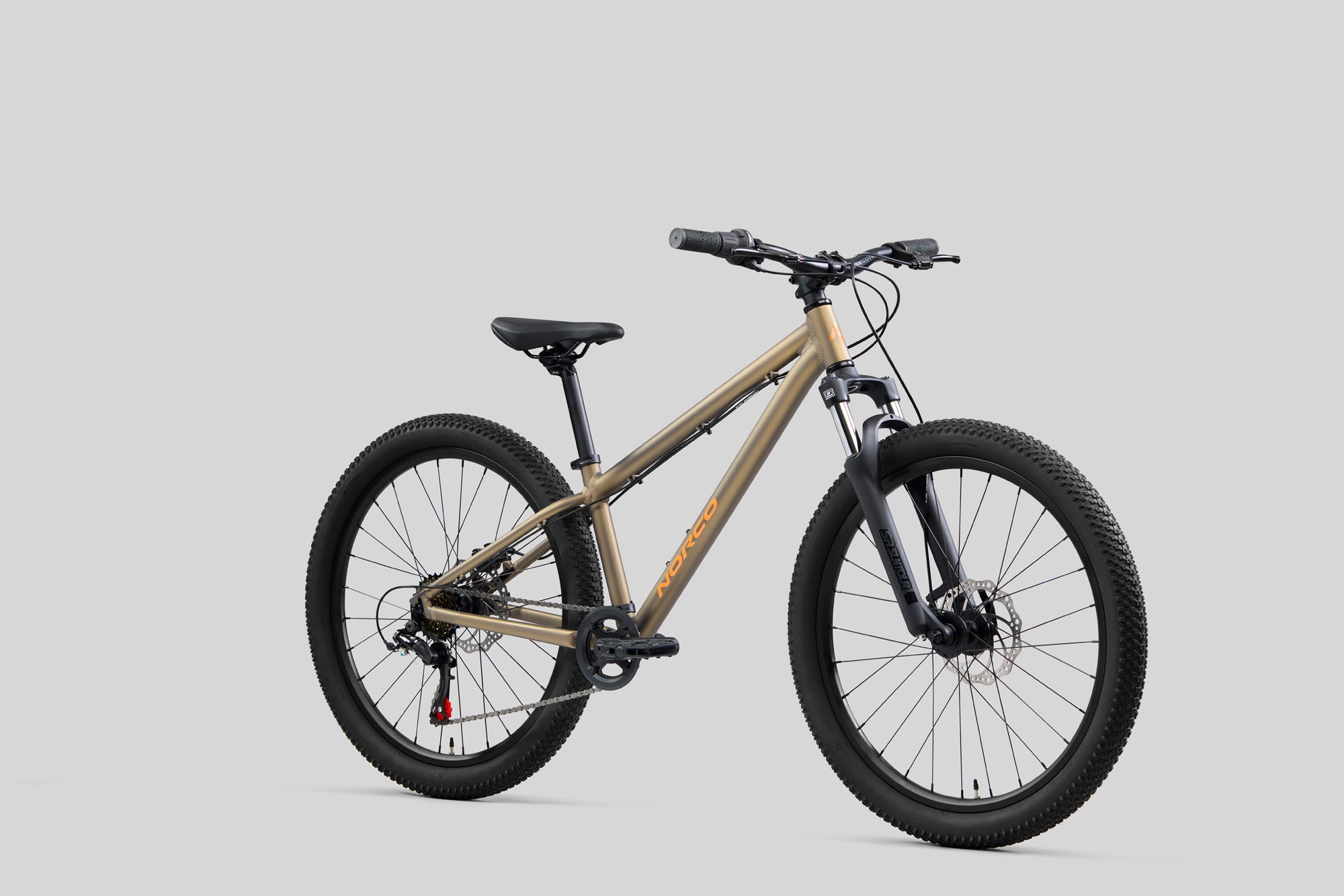

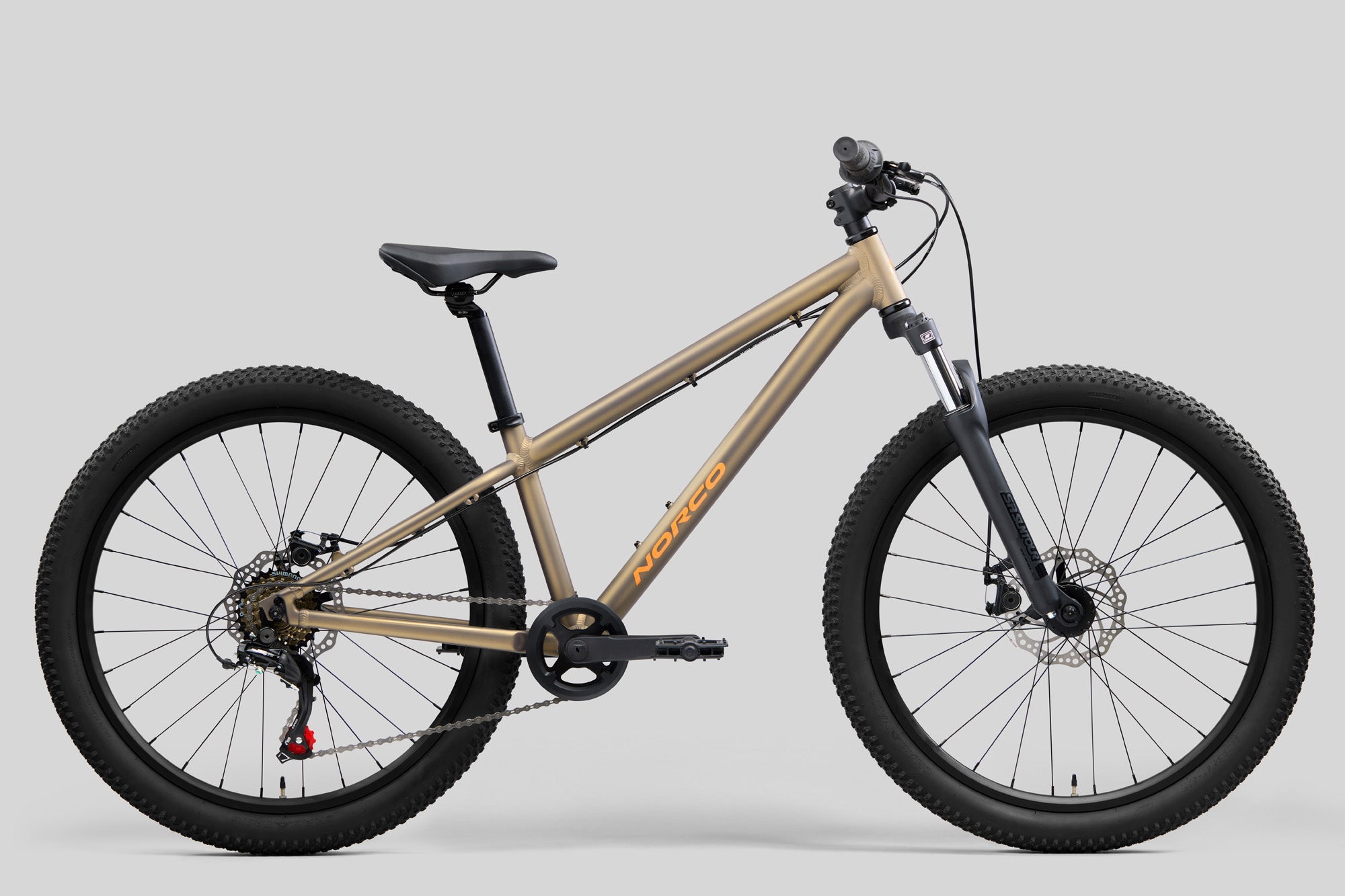

2025 STORM 24 - NANAIMO BAR

Product Details

Frame	Aluminum, 9x135mm QR, 24"
Fork	SR Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9X100 QR

Drivetrain

Rear Shifter	Shimano SL-RV200-6R, 6sp, gripshift
Rear Derailleur	Shimano TZ-500, 6sp, Direct mount
Crankset	Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket	Sealed bearing, ST 68mm
Cassette	Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel
Chain	KMC Z6

Brakes

Front Brake	Tektro Aries, Resin pads, Mechanical Disc
Front Brake Rotor	160mm, 6-Bolt
Rear Brake	Tektro Aries, Resin pads, Mechanical Disc
Rear Brake Rotor	160mm, 6-Bolt
Brake Levers	Tektro Aries alloy Jr. Levers w/reach adjust

Components

Handlebar	Alloy Jr. Riser, 600mm, 30mm Rise
Stem	Alloy 40mm Length, 31.8mm Clamp
Seatpost	Norco Alloy 27.2mm, 250mm length
Headset	External Cup Ball Bearing, 1-1/8" EC 34
Headset Spacer	1x10mm , 2x5mm
Saddle	Norco Jr XC, Steel Rail
Grips	Norco Youth, 115mm Length
Pedals	Jr. MTB Flat, 9/16"
Seatpost Clamp	Norco Alloy Bolted, 31.8mm ID

Wheels

Front Hub	Formula DC-1420 , 9x100mm QR, 28h, 6-bolt
Rear Hub	Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt
Rims	Aluminum DW, 28h, 24" MTB
Front Tire	CY Trail, 24x2.25", Wire
Rear Tire	CY Trail, 24x2.25", Wire
Spokes/Nipples	Stainless Steel w/Brass Nipples - Black

Weight

Weight

12.04 kg (26.5 lbs)
