2024 ALPINE TRAIL XR 29

SKU: MADA24737520001
(0)
$6,999.00 includes GST
SIZE
COLOUR
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

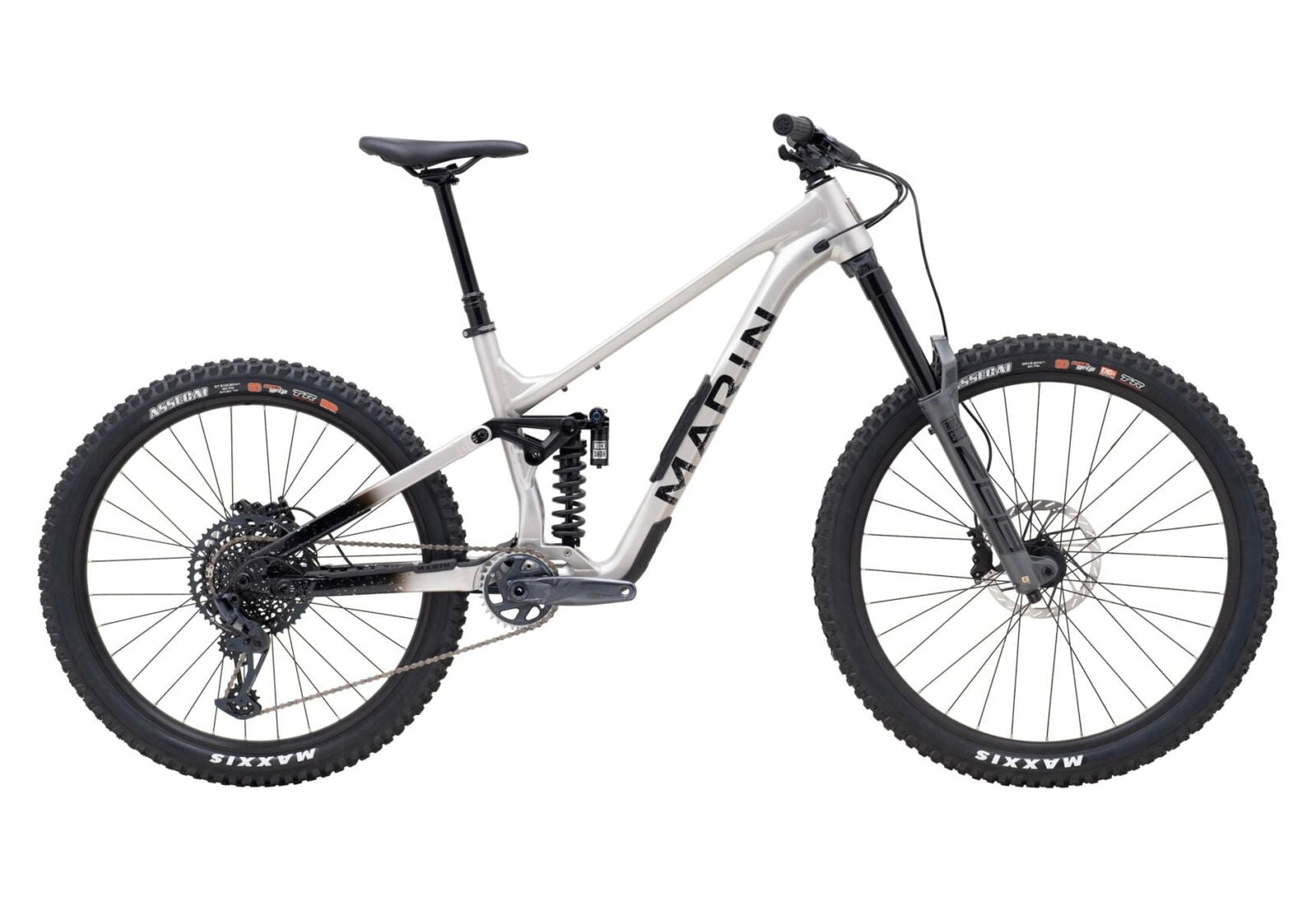

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

"XR" = "Xtra Rad" here at Marin, and like the XR models that have preceded the new Alpine Trail, we created a model for the more discriminating rider. We focused our efforts on building a bike with high performance RockShox Ultimate-level suspension, a SRAM GX Eagle Lunar 12-speed drivetrain and DB8 4-piston brakes - all equipment that helps the rider level up, but without blowing the budget. Don't forget the Maxxis rubber and our proprietary CNC machined 35mm stem and matching Trail Bar.

Specifications

01. FRAME 6061 Aluminum, 29" Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, 73mm Threaded BB w/ ISCGOS Tabs
02. FRONT SUSPENSION RockShox Zeb Ultimate, 170mm Travel, 29", 11Ox15mm Maxie Stealth, 44mm Offset
03. REAR SUSPENSION RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350Ibs, L/XL:400lbs
04. RIM Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
05. HUB REAR Formula, DCL-3482, 748x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
06. HUB FRONT Formula, DC-711, 11Ox15mm, 6-Bolt Disc, 32h
07. SPOKES 14g Black Stainless Steel
08. TIRES Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
09. DERAILLEUR REAR SRAM GX Eagle Lunar 12-Speed
10. DERAILLEUR FRONT 0
11. SHIFT LEVER SRAM GX Eagle Lunar MMX Mount
12. CRANKSET SRAM GX Eagle, 32T. 55MM CL, 170MM Length
13. BOTTOM BRACKET SRAM DUB MTB 73
14. CHAIN SRAM NX Eagle
15. CASSETTE SRAM GX 1275 T-Type 10-52T
16. BRAKES FRONT SRAM DBB 4-Piston Hydraulic Disc, HSC 200mm Rotor
17. BRAKES REAR SRAM DBB 4-Piston Hydraulic Disc, HSC 200mm Rotor
18. BRAKE LEVERS SRAM DBB Hydraulic
19. HANDLEBAR Marin Trail. 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
20. STEM Marin CNC, 35mm Length, 35mm Bar Bore
21. GRIPS Marin Grizzly Lock On
22. HEADSET FSA Custom Headset, Adjustable HTA Design
23. SEATPOST TranzX, YSP39 1 x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
24. SADDLE Marin Speed Concept
25. PEDALS Marin MTB Plastic
26. EXTRAS Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
27. EXTRAS Downtube Storage Bag
