The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice.

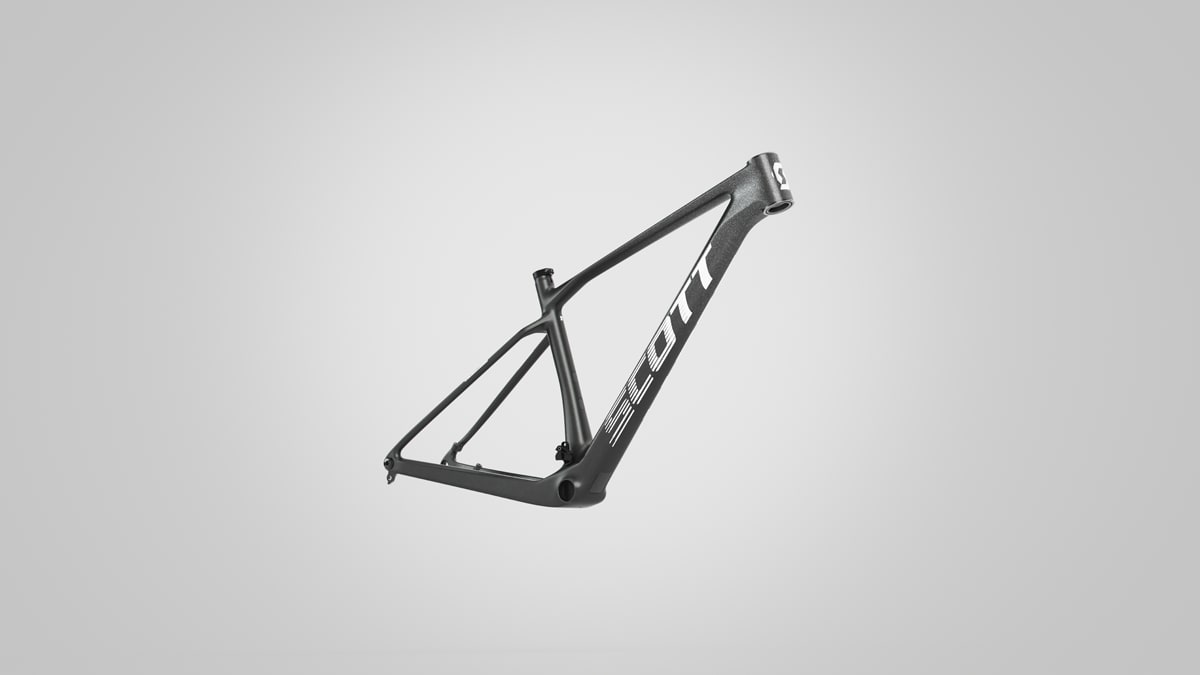

The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle.This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes.
Show more

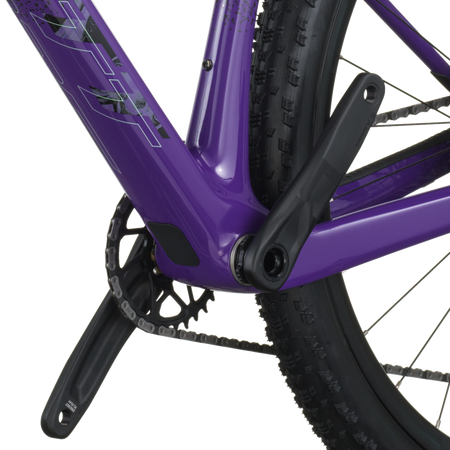

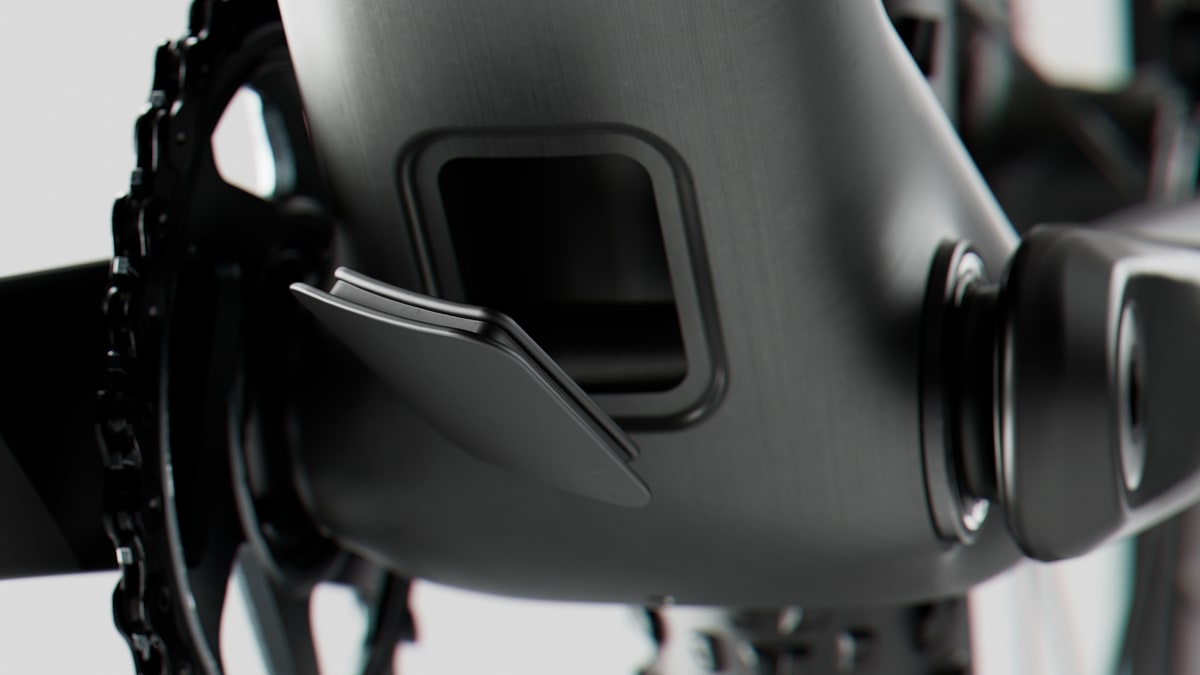

A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
Show more

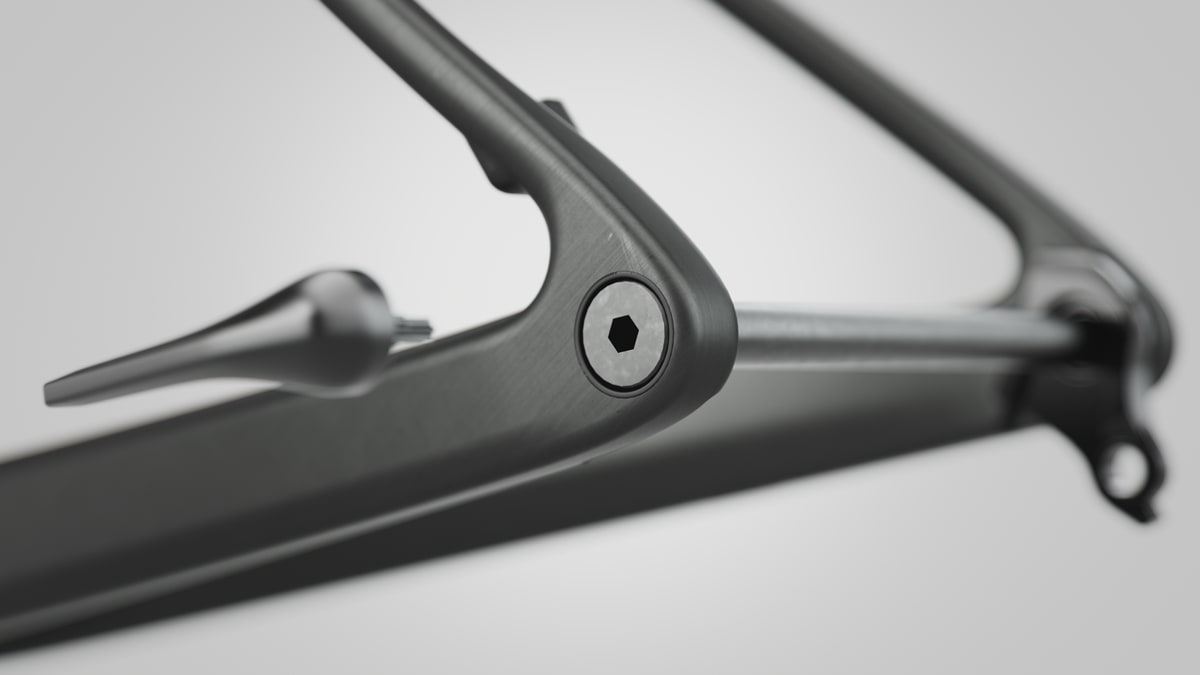

The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the head flush with the surface.
Show more
| Frame |
Scale Carbon HMFAdjustable head angle, Syncros Cable Integration SystemAdvanced Shock & Standing Damping SystemBB92, UDH Interface, 12x148mm with 55mm Chainline
|
| Fork |
Scale Rigid HMFPostmount Disc StandardTapered Carbon steerer
|
| Headset |

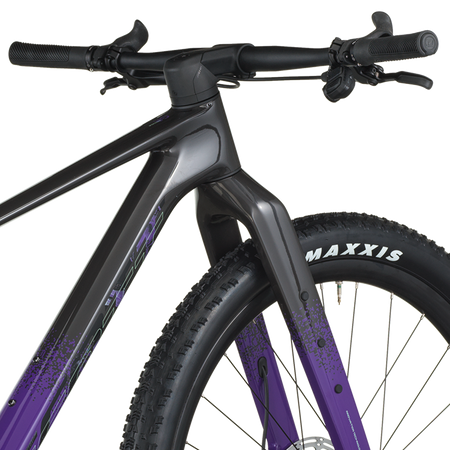

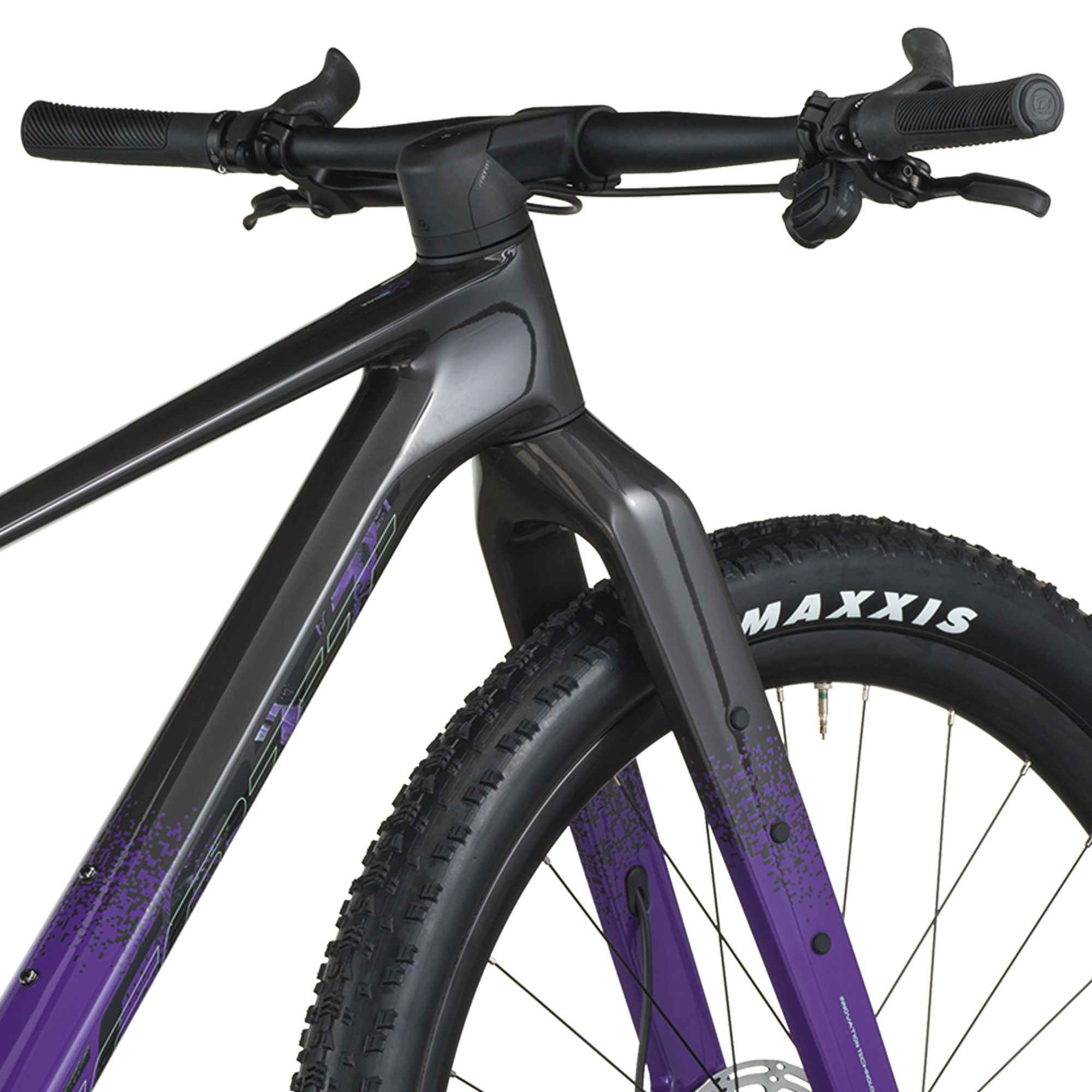

Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |
SRAM S1000 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
|
| Shifters |
SRAM AXS Pod Controller
|
| Brakes |
SRAM DB6 4-Piston Disc
|
| Crankset |
SRAM Eagle 70 TransmissionDUB, 55mm CL, 34T
|
| Chainguide |
SCOTT custom
|
| BB-Set |
SRAM DUB PF 92 MTB Wide, shell 41x92mm
|
| Handlebar |
Syncros Fraser 2.0 XC Alloy 6061 D.B.Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips
|
| H'stem |
Syncros XC 2.0Syncros Cable Integration System-12° rise, 6061 Alloy, 31.8mm, 1 1/8"
|
| Seatpost |
Syncros Duncan 2.0, 10mm offset31.6x400mm
|
| Seat |
Syncros Belcarra V2.0 Cut OutCRMO rails
|
| Front Hub |
Formula CL-811, 15x110mm
|
| Rear Hub |
Formula CL-3248, 12x148mm
|
| Chain |
SRAM CN Eagle 70 Transmission
|
| Cassette |
SRAM Eagle XS 1270 V2 Transmission 10-52
|
| Spokes |
Stainless Black 15G, 1.8mm
|
| Rims |
Syncros X-28, 28H, Tubeless ready
|
| Extras |
SRAM AXS Powerpack
|
| Accessories |
Spirgrips+ Inner Bar ends
|
| Approx weight in KG |
10.5 (Tubless setup)
|
| Approx weight in LBS |
23.15 (Tubless setup)
|
| Rotor |
SRAM Centerline CL Rotors 180/F and 160/R
|
| Front Tire |
Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
|
| Rear Tire |
Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
|
| Max. System Weight |
120kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
|
