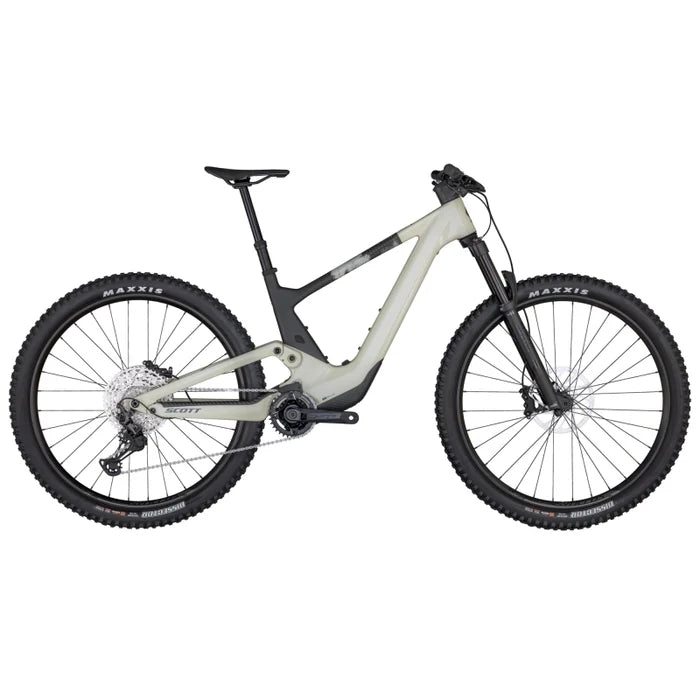

2025 Scott Voltage eRIDE 920

(0)

$6,500.00 includes GST

Sale ~~$12,500.00~~ $6,500.00 includes GST

SIZE

SM MD LG XL

COLOUR

WHITE / BLACK

Need help choosing the right size?

Read our guide or get in touch

Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Description

Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.

Please note that bike specifications are subject to change without prior notice

Key features

Voltage eRIDE Carbon HMF Frame
Marzocchi Z2 Air 150mm Fork
FOX Float Custom, 150mm, TwinLoc
Shimano XT-Deore 12Sp
SRAM DB8 4 Piston Disc Brakes
Maxxis Tires

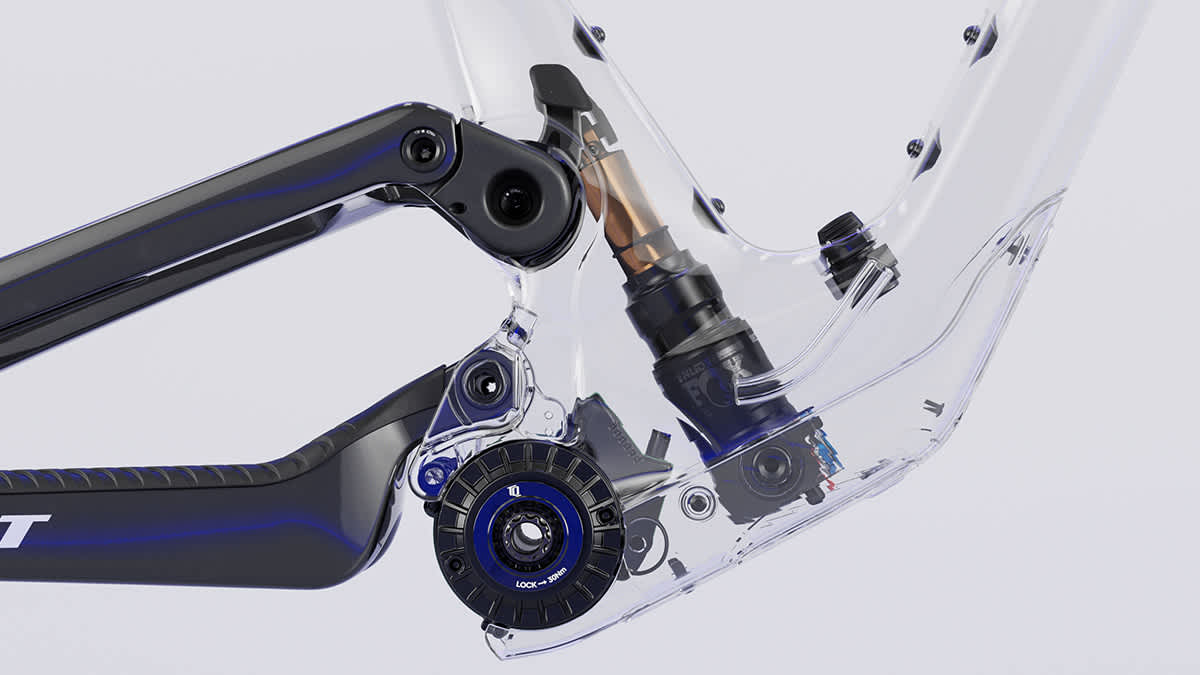

INTEGRATED SUSPENSION TECHNOLOGY

The Voltage applies our patented Integrated Suspension Technology. Not only does this make for a fantastic looking bike, but it also allows us to improve the bike's suspension performance.

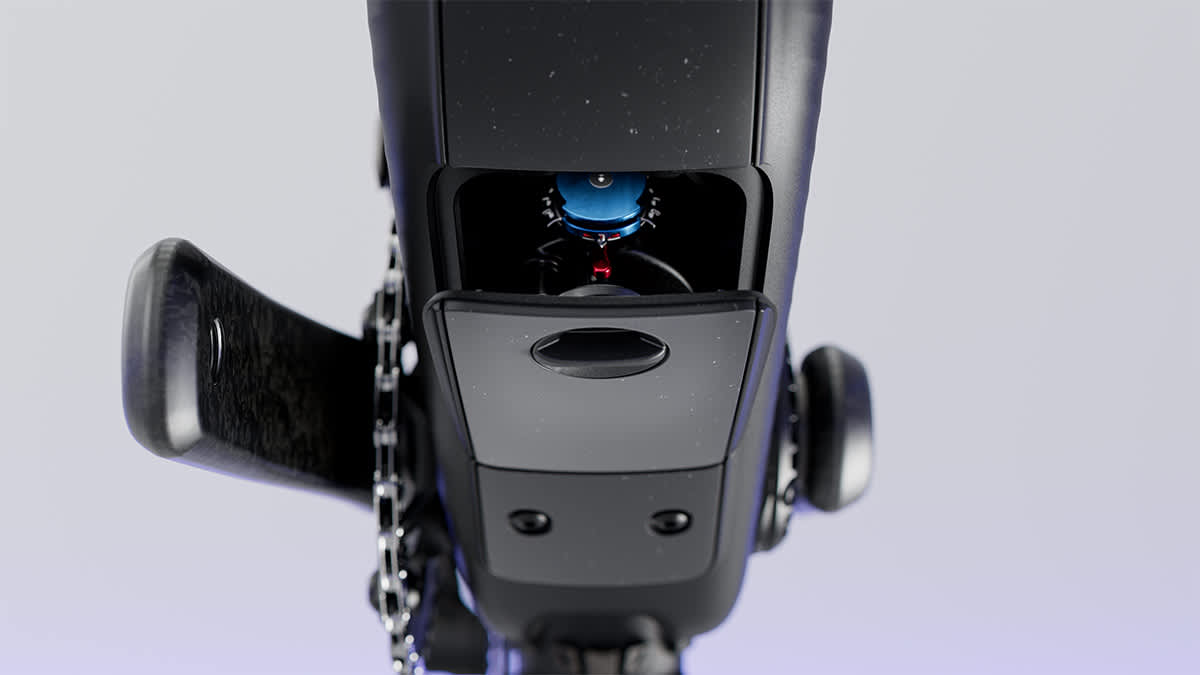

EASY SHOCK ACCESS

With the Voltage, accessing our patented integrated shock is easier than ever. Just push the botton, pop off the cover, and access is yours. From here, adjusting rebound, air pressure, etc. is a mere button push away.

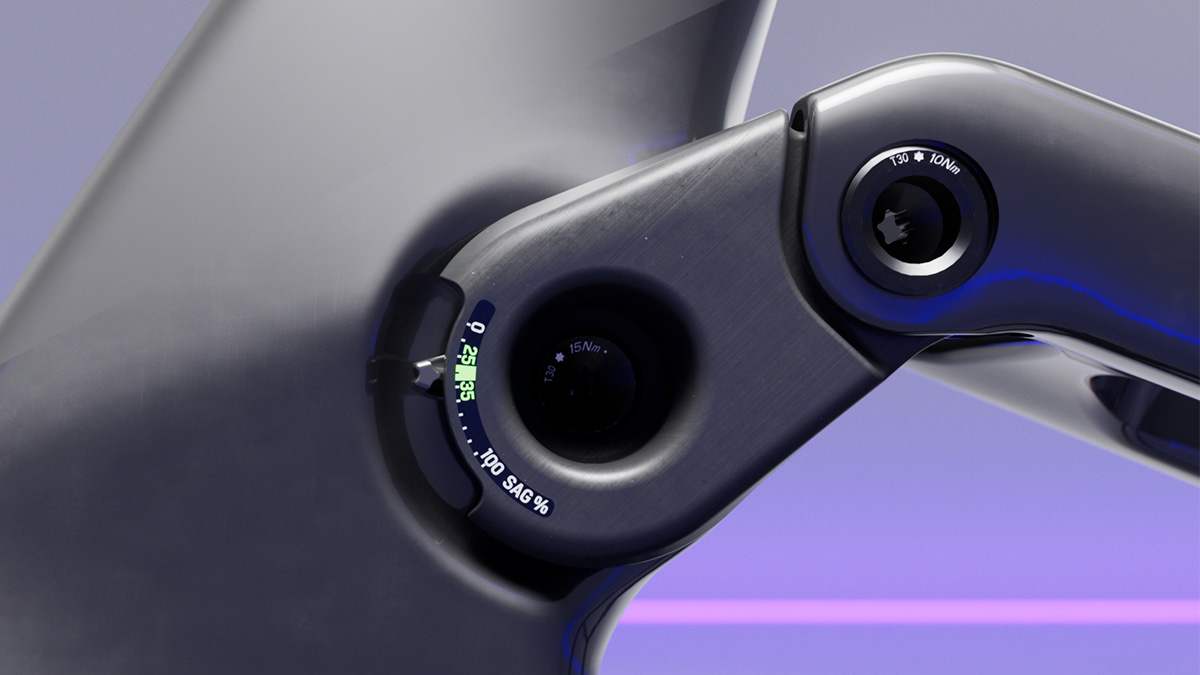

EXTERNAL SAG INDICATOR

Setting sag and checking travel use is easier than ever before with the Voltage. An external indicator on the link allows the end user to easily set sag and to identify how much travel they're using.

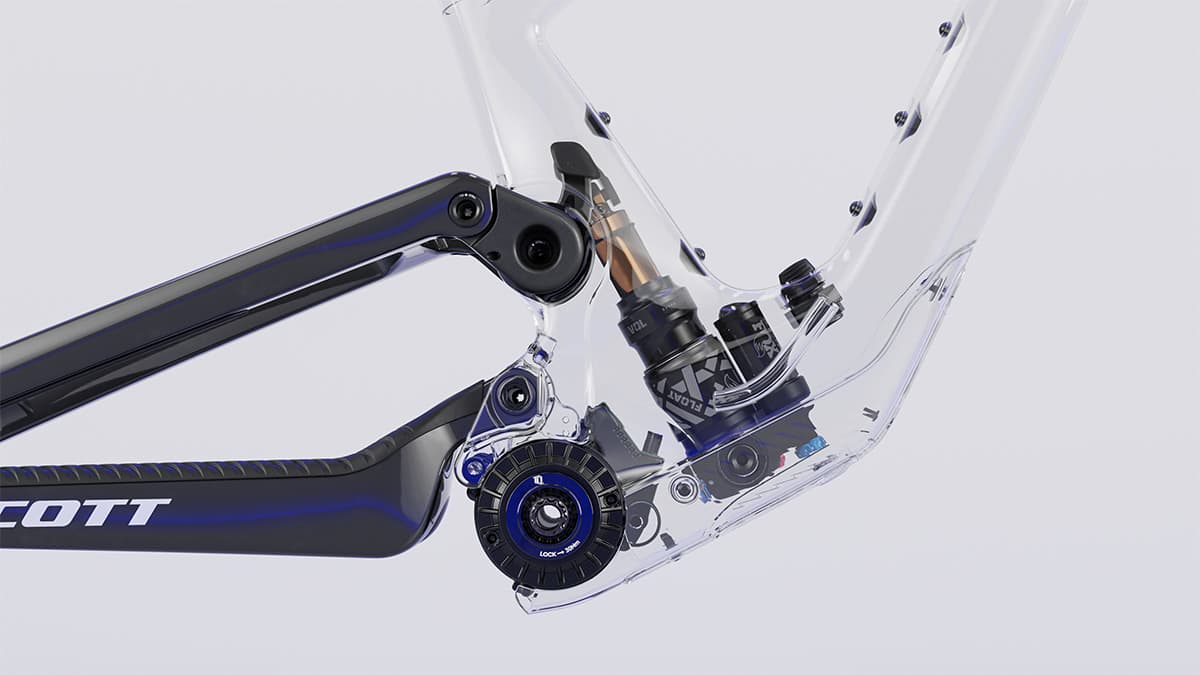

FLOAT X NUDE SUSPENSION

The Voltage Tuned model features our NUDE Suspension technology with the Float-X NUDE shock from FOX, which is paired with a fork that favors more adjustability.

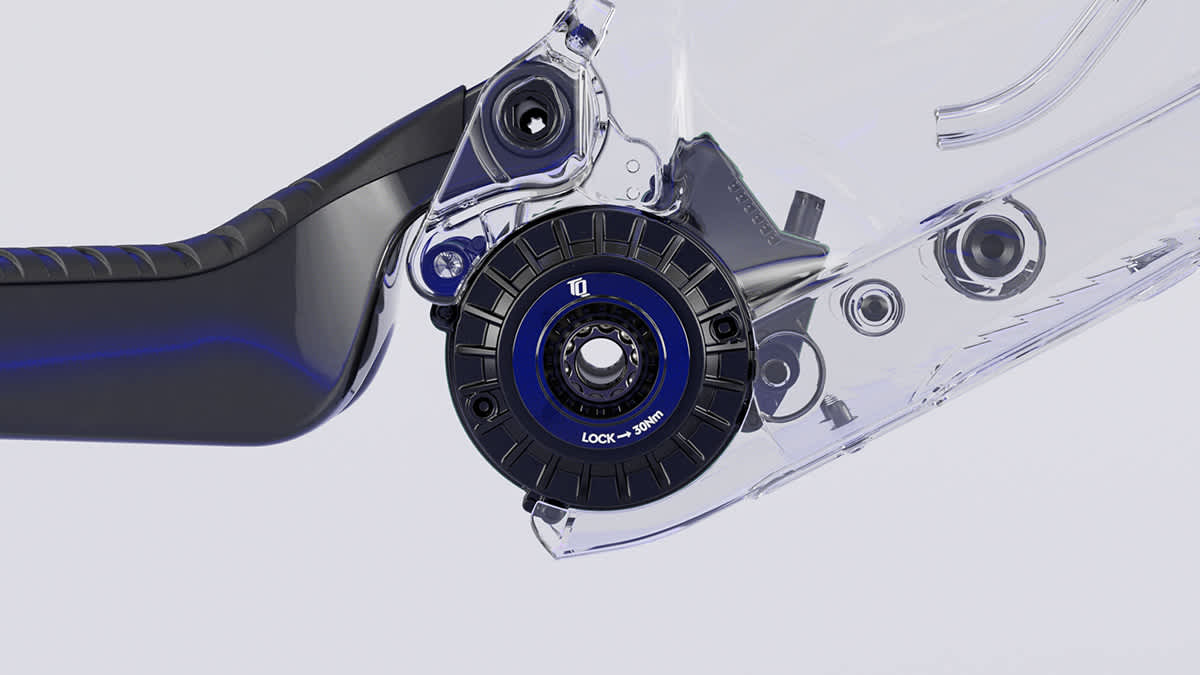

TQ HPR50 MOTOR

TQ is a German company founded in 1994 who specialize in electric components across a range of industries.

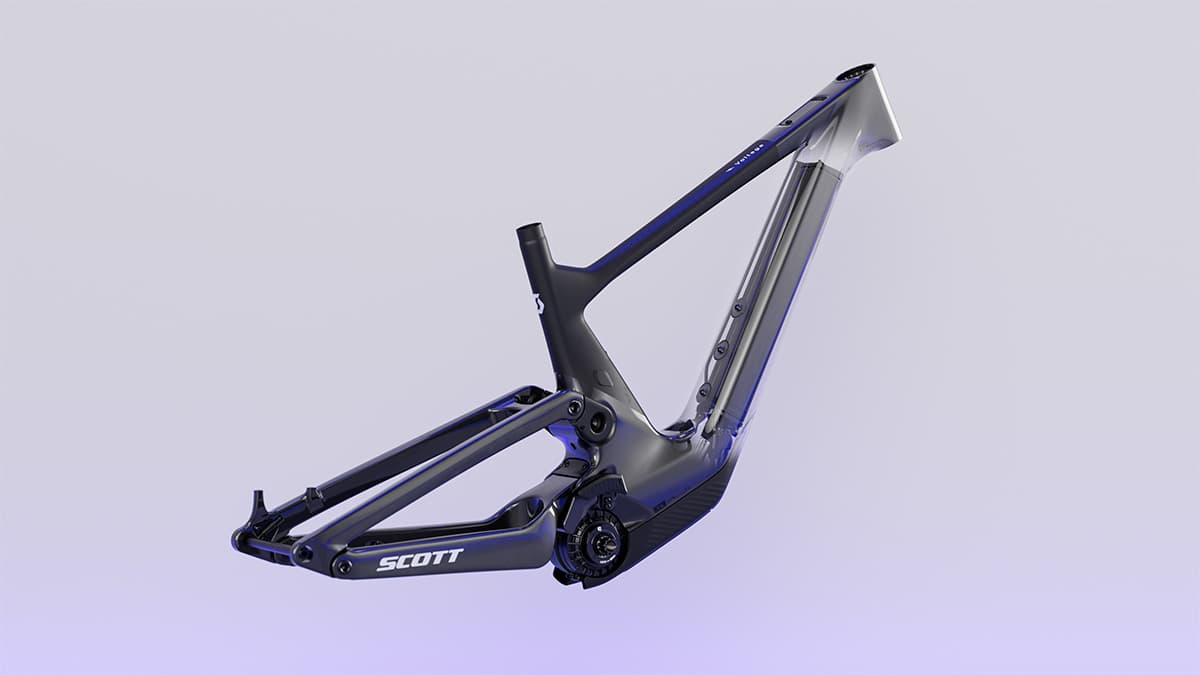

TQ HPR 360Wh Battery

The Voltage features a 360Wh internal battery which can be further complemented by a 160Wh external range extender.

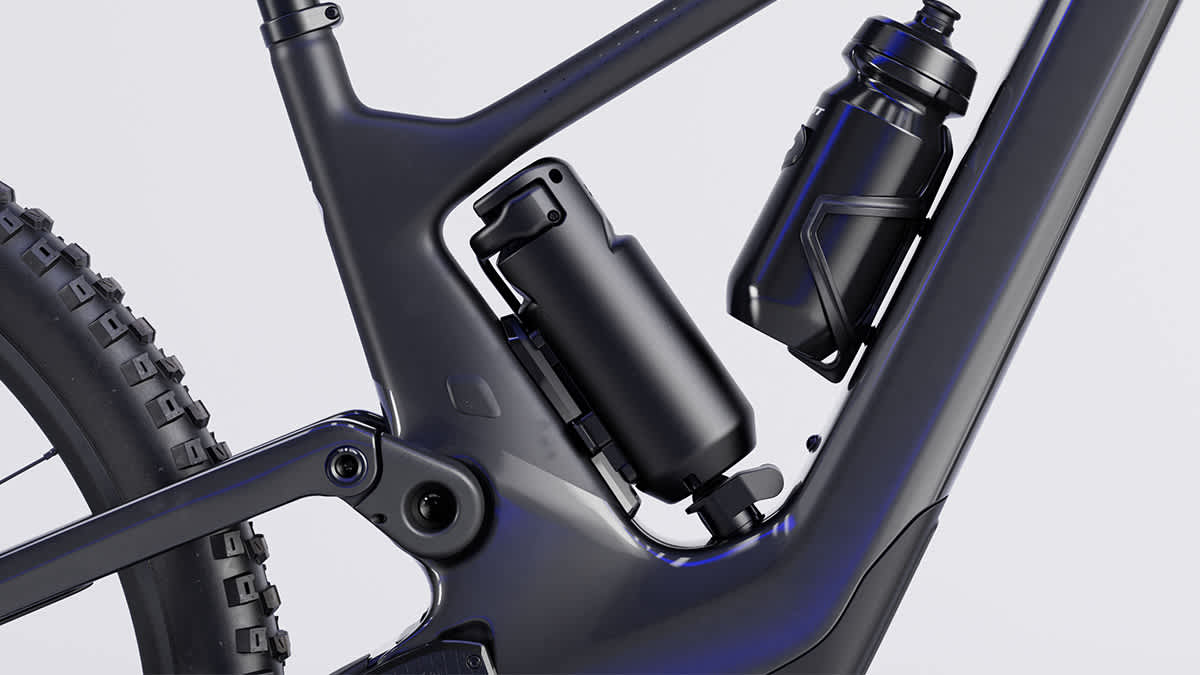

TQ HPR RANGE EXTENDER

The 160Wh TQ range extender features a slim design and low weight, meaning minimal impact on the bike's handling while allowing you to go further on every ride.

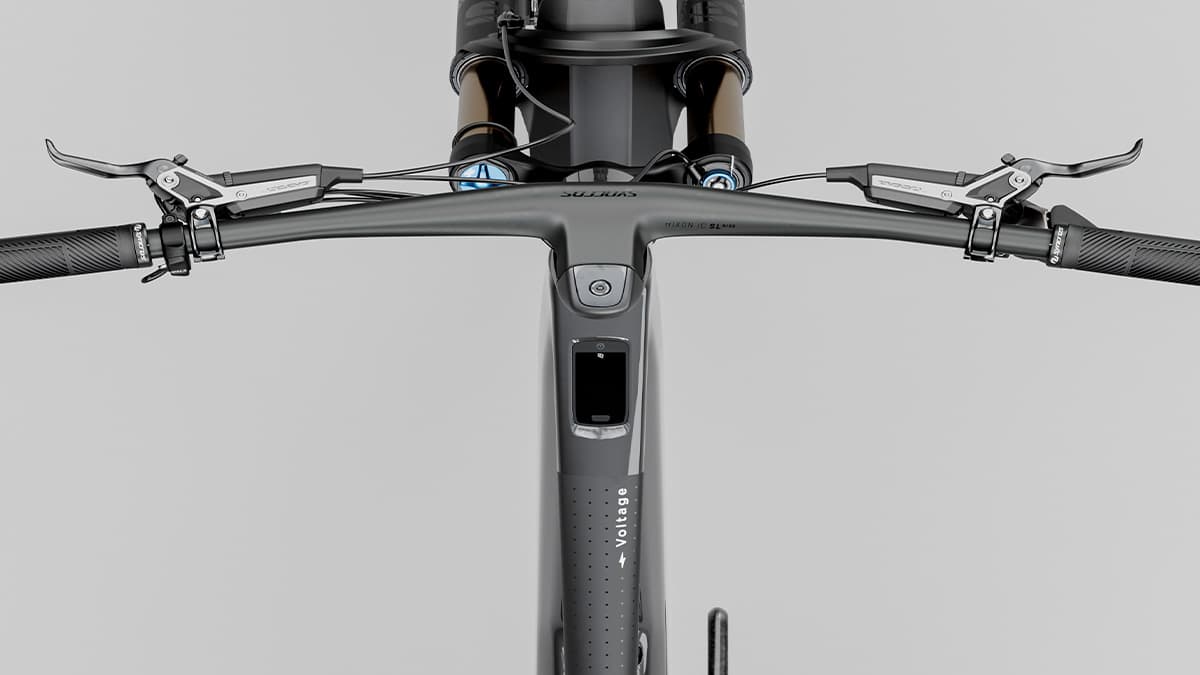

TQ HPR Display

To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar.

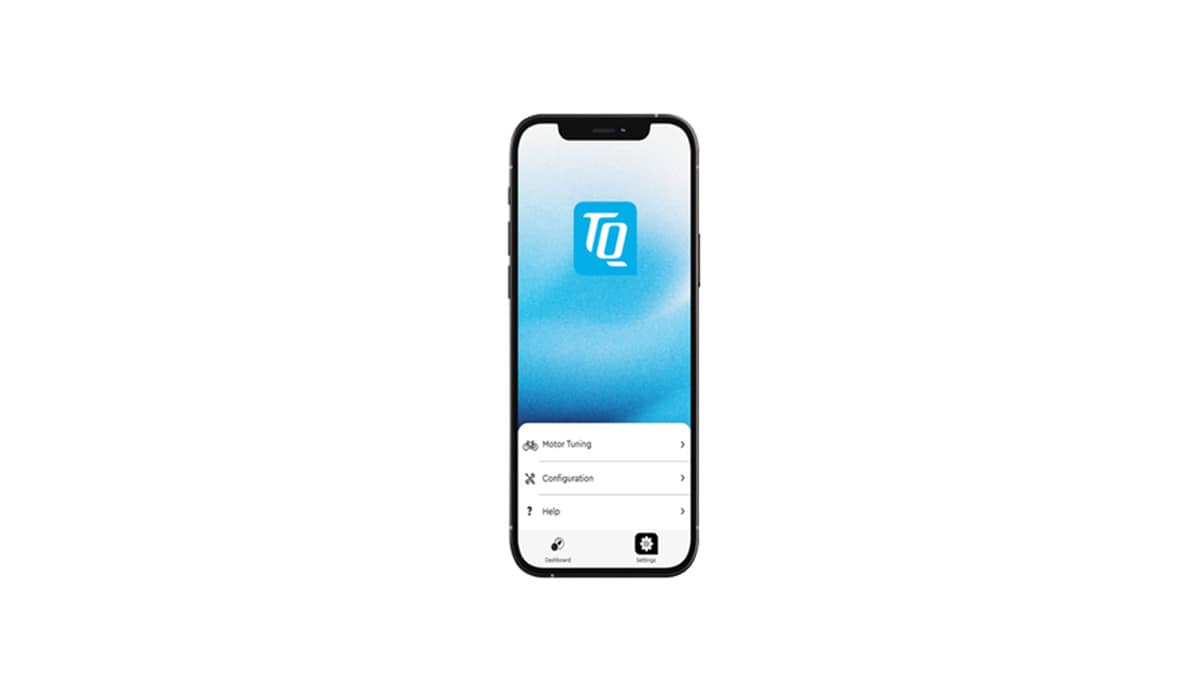

TQ HPR App

The TQ app offers real benefit and is easy to use.

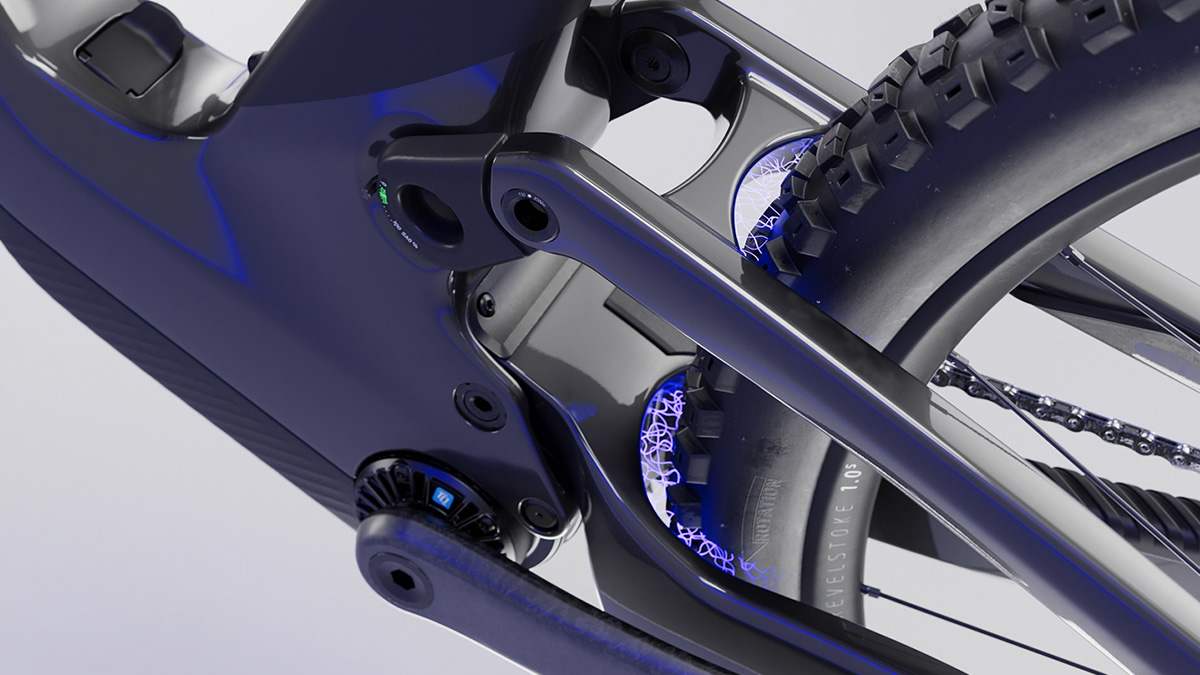

CLEARANCE

The TQ motor allows us to keep a standard Q-factor with a 55mm chain line.

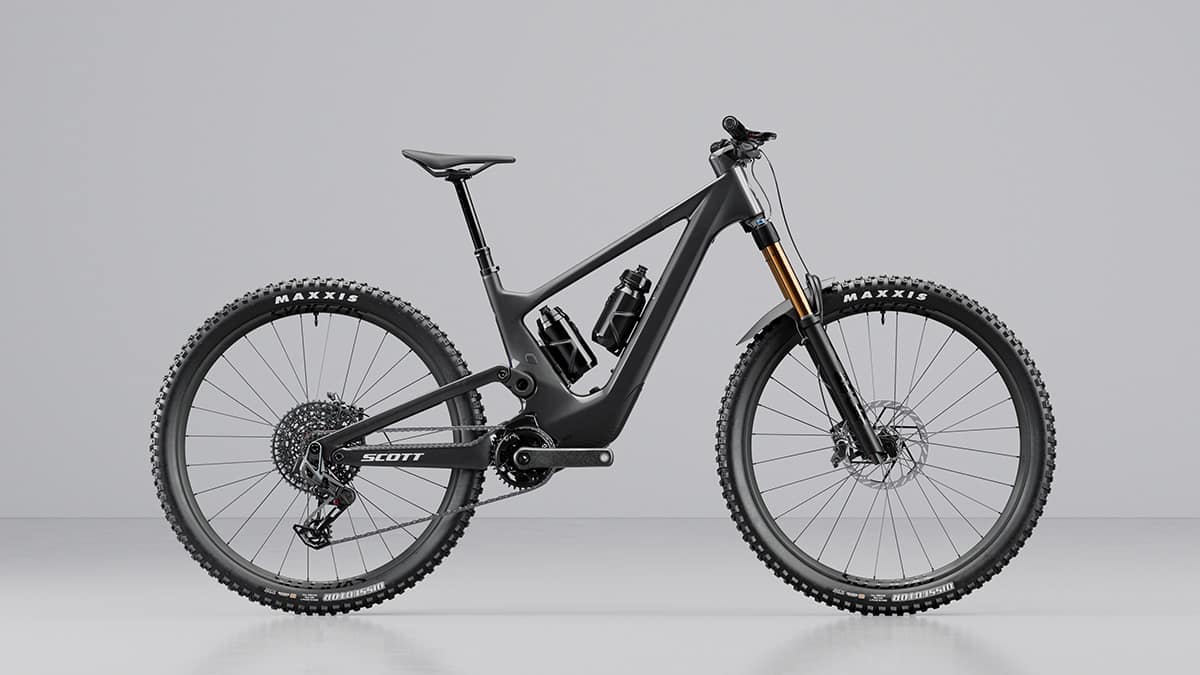

DUAL WATER BOTTLE

Unlike most full suspension E-Bikes, on the Voltage there is no need to choose between the range extender or a water bottle.

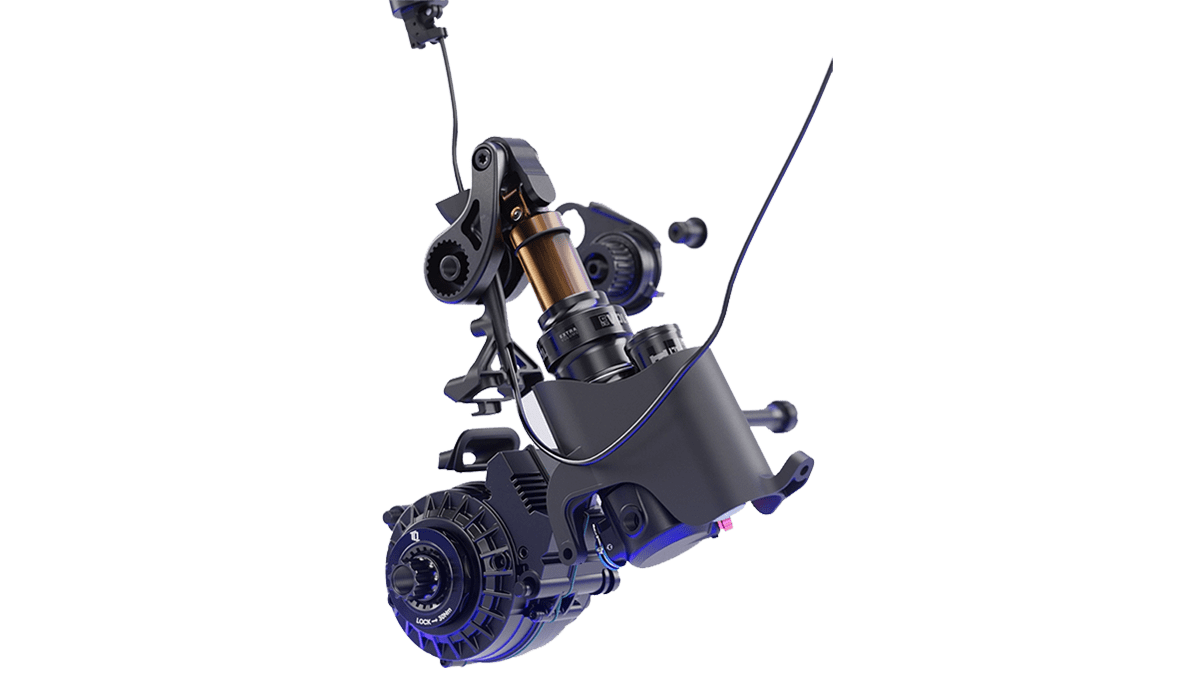

CABLE MANAGEMENT

It’s no secret that there is a lot going on inside the modern eMTB, with dropper cable, drive unit and battery cables, and a rear shock discreetly tucked away inside the frame. We have developed a neat solution to keep things safe and tidy.

Frame	Carbon HMFIntegrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angleSyncros Cable Integration SystemTQ HPR50 / UDH Interface / 12x148mm with 55mm ChainlineRange Extender Ready
Fork	Marzocchi Z2 Air Rail3 modes / 15x110mm QR axle / tapered steerer44mm offset / Reb. Adj. / Lockout / 150mm travel
Travel	Front: 150mm / Rear: 155mm
Rear Shock	FOX Float Custom EVOL Performace Trunnion3 modes / Lockout-Trail-DescendDPS / Reb. Adj.Travel 155mm / T185X55mm
Remote System	SCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes
Headset	Syncros - Acros Angle adjust & Cable Routing HS SystemStainless / +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Rear Derailleur	Shimano XT RD-M8100 SGSShadow Plus / 12 Speed
Shifters	Shimano Deore SL-M6100-IR / Rapidfire PlusI-spec EV clamp
Brakes	SRAM DB8 4 Piston Disc
Crankset	FSA Alloy crankset / 175mm / 34T
Chainguide	ethirteen / espec Slider
Chainring	Scott custom spider / FSA 12Speed 34T chainring
Handlebar	Syncros Hixon 2.0 Alloy 6061 D.B.12mm Rise / back sweep 8° / 780mmSyncros Endurance lock-on grips
H'stem	Syncros AM 2.0Syncros Cable Integration System4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost	Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mmS size 140mm / M size 180mm / L & XL size 210mm
Seat	Syncros Tofino 2.0 Regular
Front Hub	Formula CL-811 / 15x110mm
Rear Hub	Formula CL-148M / 12x148mm
Chain	Shimano CN-M6100
Cassette	Shimano CS-M6100 / 10-51 T
Spokes	Stainless Black 15G / 1.8mm
Rims	Syncros X-30S / 32H / 30mm / Sleeve JointTubeless ready
Approx weight in KG	19.3 (with tubes)
Approx weight in LBS	42.55 (with tubes)
Drive Unit	TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery	TQ Internal 360Wh
Display	TQ HPRBluetooth / ANT+ / Dedicated Smartphone app
Charger	TQ 100-240V-4A
Rotor	SRAM Centerline CL Rotors F&R 200mm
Front Tire	Maxxis Dissector / 29x2.6" / 60TPI Wire BeadEXODual
Rear Tire	Maxxis Dissector / 29x2.6" / 60TPI Wire BeadEXODual
Max. System Weight	128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
