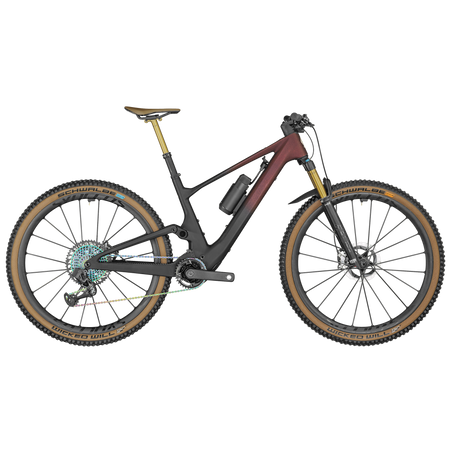

2025 SCOTT Lumen eRIDE 900 SL

(0)

$15,999.00 includes GST

Sale ~~$26,499.00~~ $15,999.00 includes GST

SIZE

COLOUR

TAN / CARBON

Need help choosing the right size?

Read our guide or get in touch

Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Key features

Lumen Carbon HMX Frame
FOX 34 Float Factory 130mm Fork
FOX Nude 5T EVOL, TwinLoc, 130mm
SRAM XX1 Eagle AXS 12 Speed
Shimano XTR 4 Piston Disc Brakes
Syncros Silverton SL2 CF Wheels
FOX Dropper Post, Syncros CF Parts
Integrated Suspension Technology#Flex Pivot / Adjustable head angle#Syncros Cable Integration System#BB92 / UDH Interface / 12x148mm with 55mm Chainline
Kashima, FIT4 remote, 3-Modes with low Speed adj.#Kabolt 15x110mm axle, Lockout
SCOTT custom w. travel & geo adj.#3 modes, Kashima large air volume, Travel 120-80-Lockout

Description

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, a Lumen, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.

Please note that bike specifications are subject to change without prior notice

Technologies

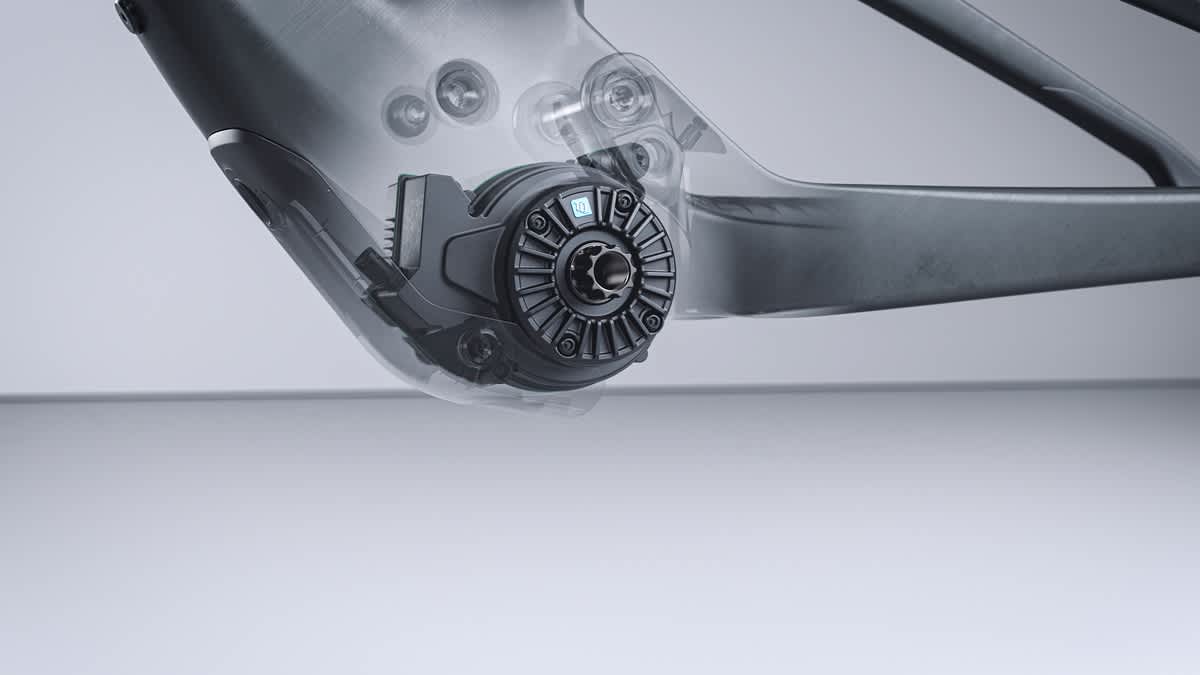

TQ HPR50 Motor

TQ is a German company founded in 1994 who specialize in electric components across a range of industries…

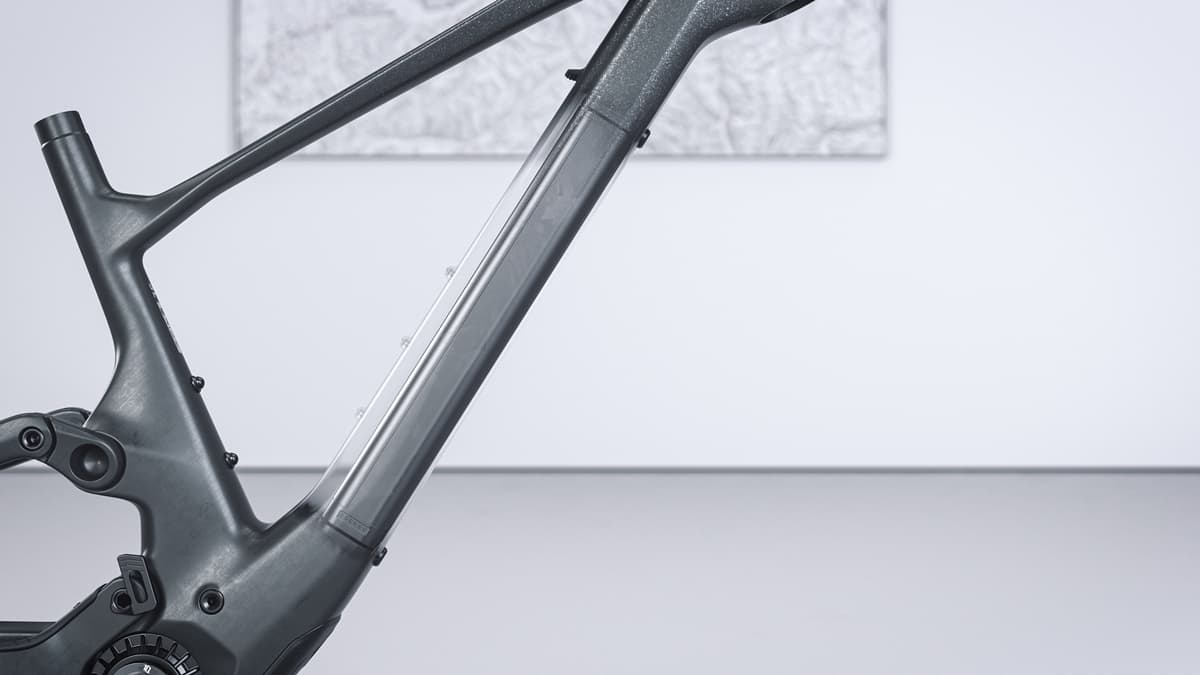

TQ HPR 360Wh Battery

The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender…

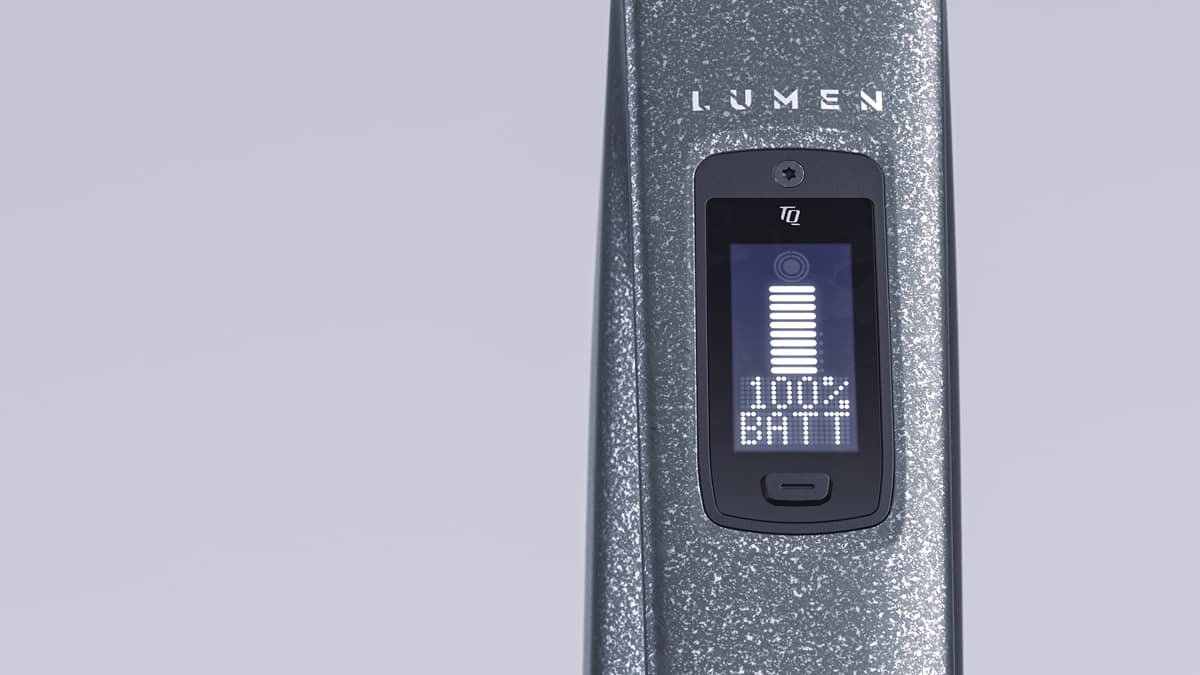

TQ HPR Display

To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar...

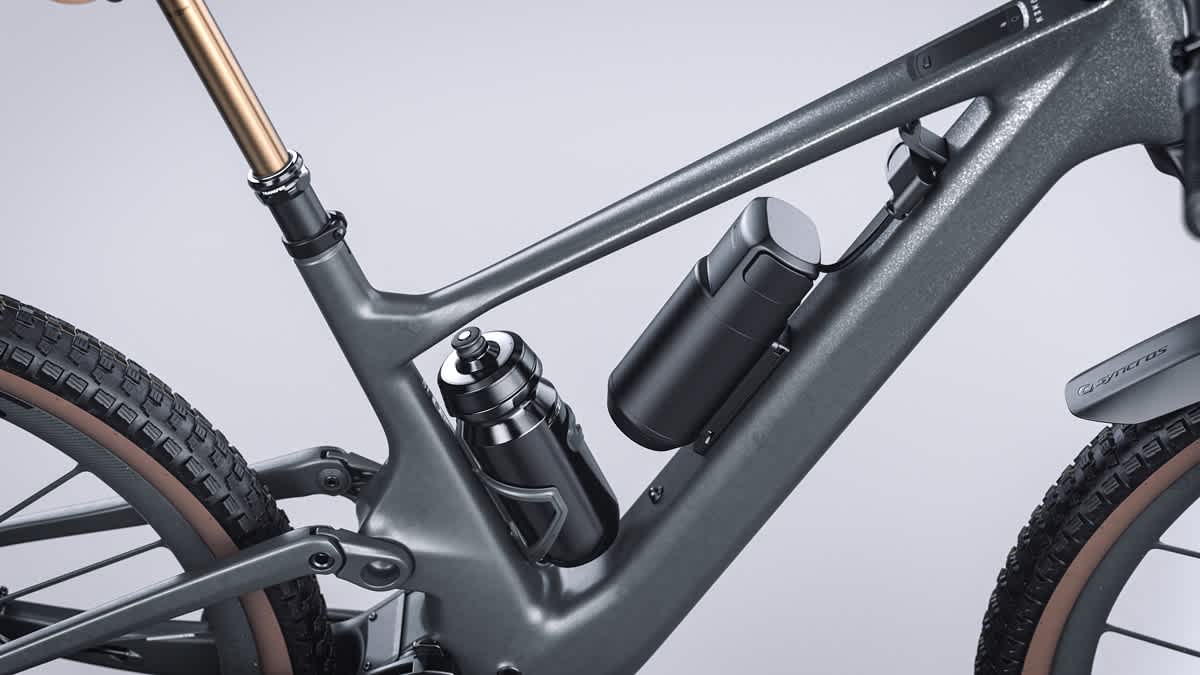

TQ HPR RANGE EXTENDER

The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender…

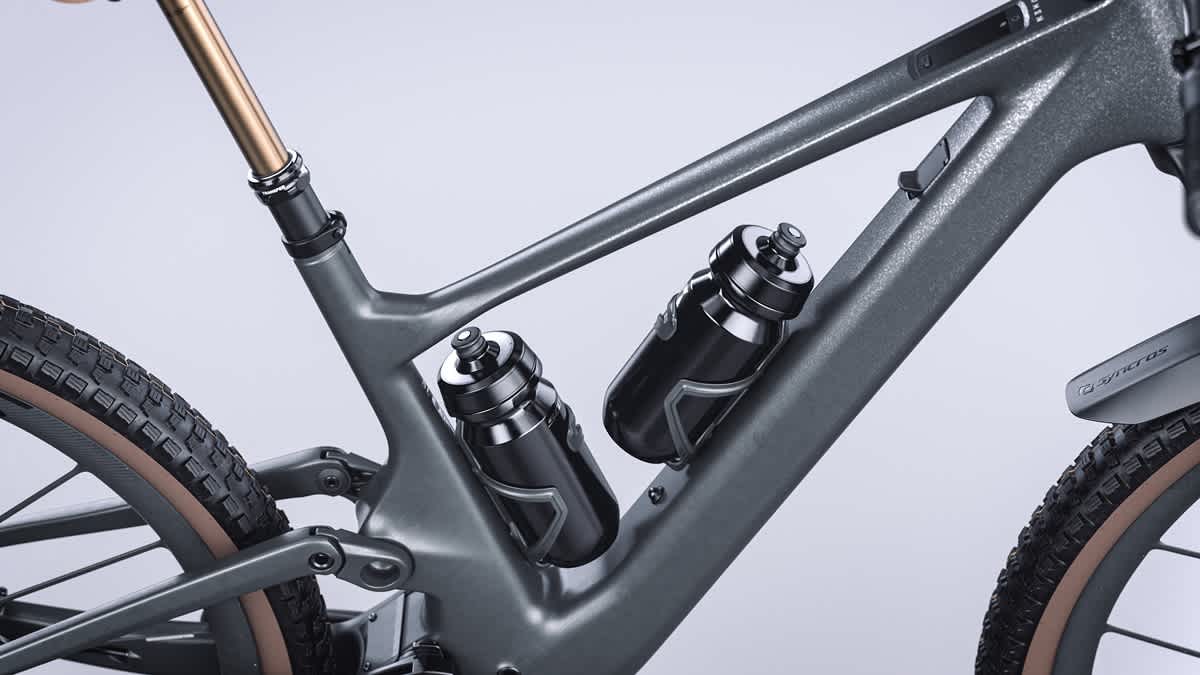

Lumen Dual Water Bottle

Unlike most full suspension E-Bikes, on the Lumen there is no need to choose between the range extender or a water bottle…

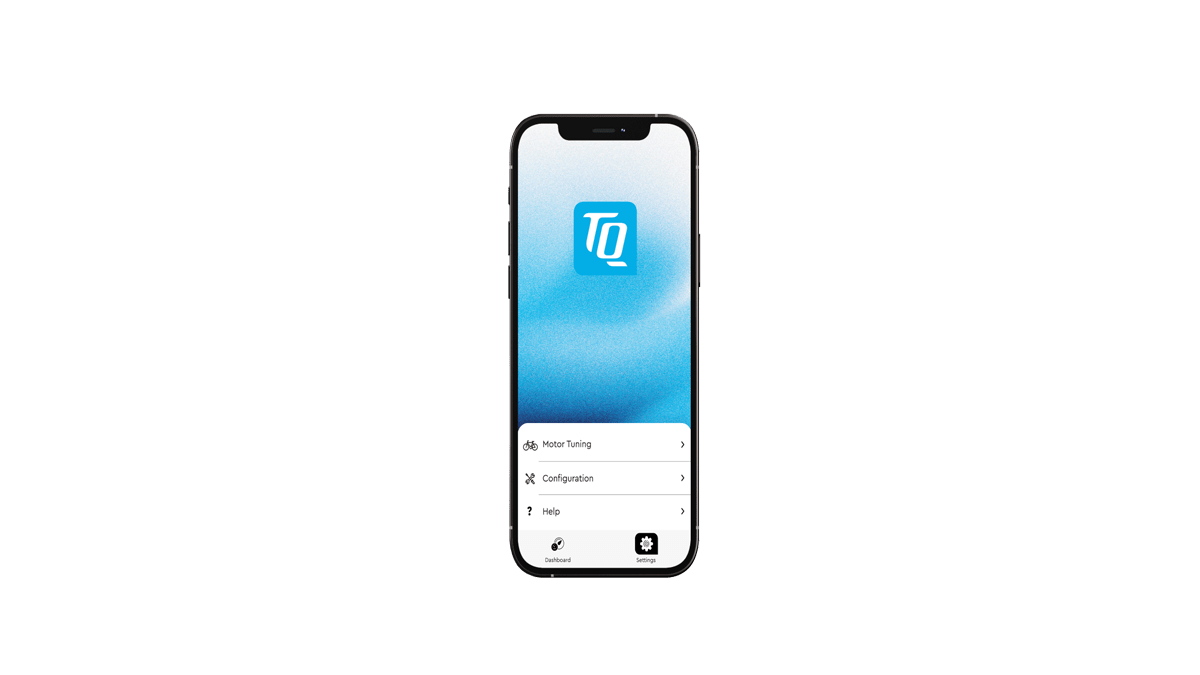

TQ HPR App

The TQ app offers real benefit and is easy to use…

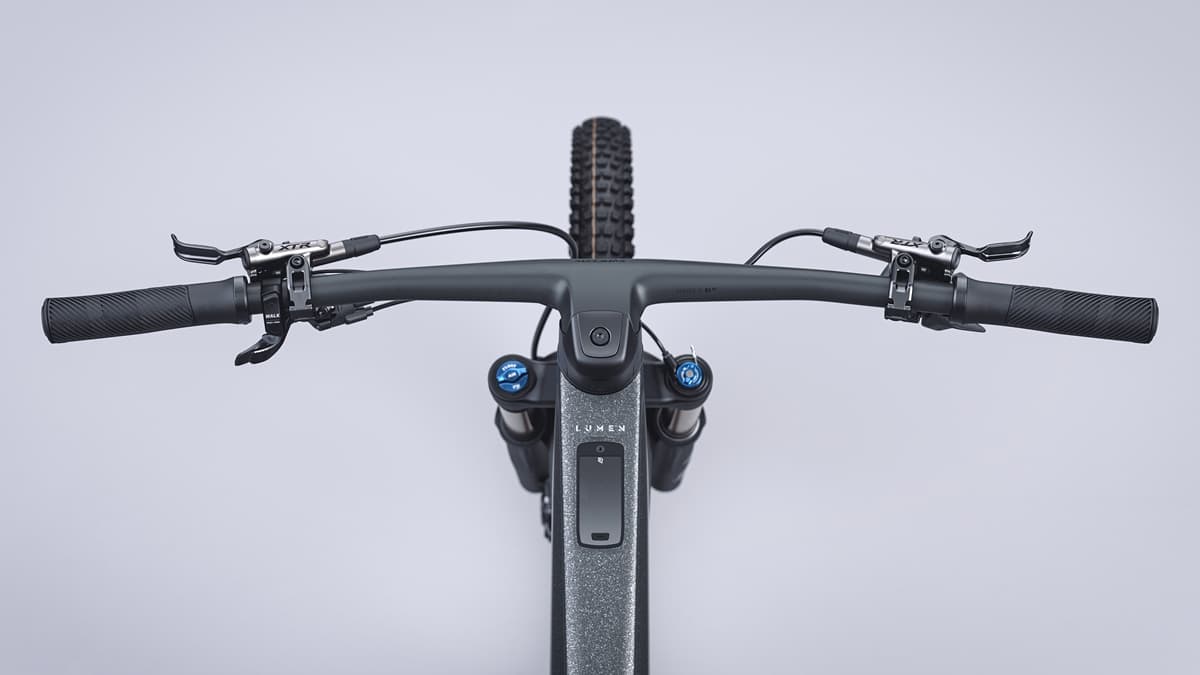

SYNCROS FRASER iC SL DC COMBO

The Lumen 900 SL and 900 models feature the Fraser IC DC combo from Syncros.

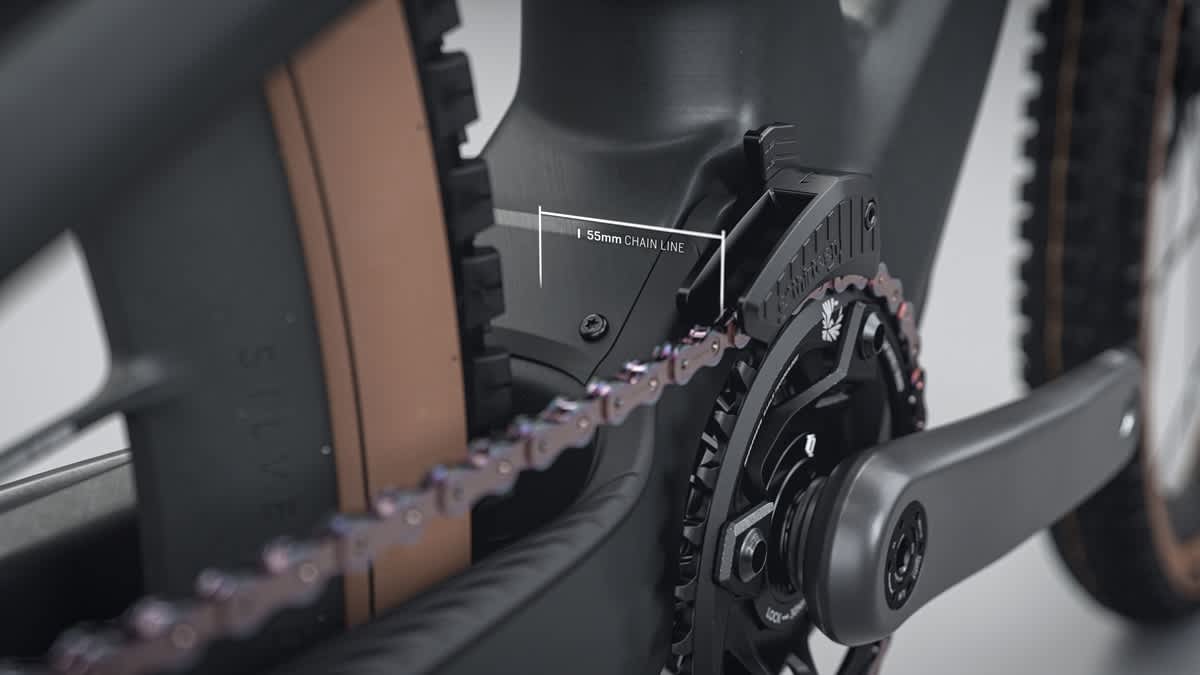

Lumen Chain Line

The TQ motor allows us to keep a standard Q-factor with a 55mm chain line – exactly the same as the Scott Spark…

NUDE Suspension Technology

Shocks with NUDE Technology have been integral to SCOTT Full suspension bikes for nearly two decades. Working closely with our suspension partners, we continue to improve upon this technology so that whether you're racing World Cup's at the highest level or out for a big day in the mountains, you'll always have the best support on offer. Click here to learn more (LINK TO NUDE TECHNOLOGY PAGE to come)

TwinLoc Suspension System

With TwinLoc, a rider can effectively control the complete frame, fork, and shock as a system. Why does this matter? A bike with 150mm of suspension travel, correctly set up, has more sag than a bike with 130mm. It's that extra travel that makes it more fun to ride and more capable on the descents, but the greater sag has an oversized effect on the bike's geometry and climbing performance. That's where TwinLoc matters.

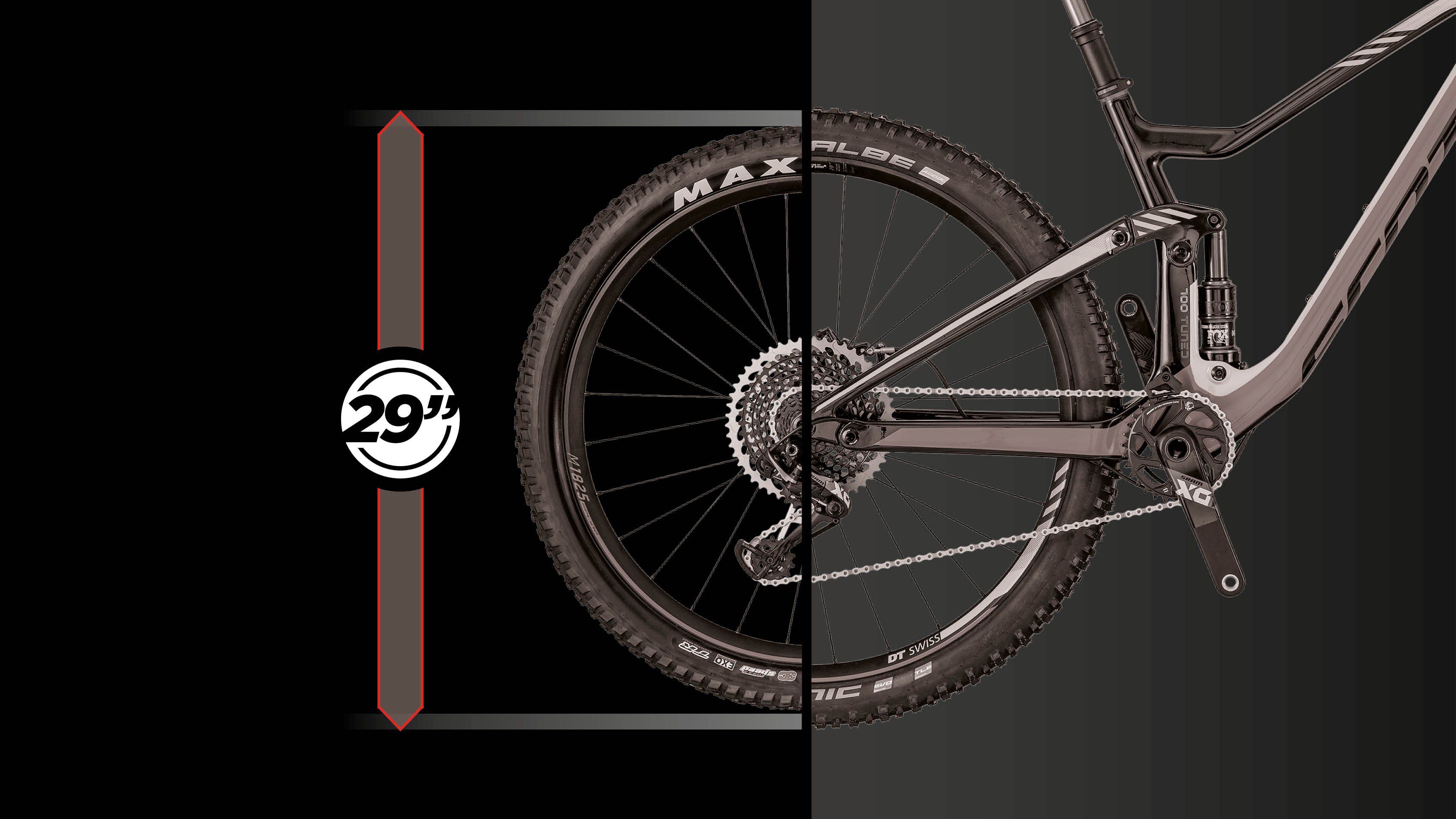

29 Wheels

Improved roll-over is the most noticeable attribute when it comes to 29” wheels. The big wheels are great for rolling over nasty roots and rocky sections, essentially making it easier to ride these conditions. Improved traction is also a key factor with the increased wheel diameter compared to 27.5” wheels as tire contact to the ground is larger.

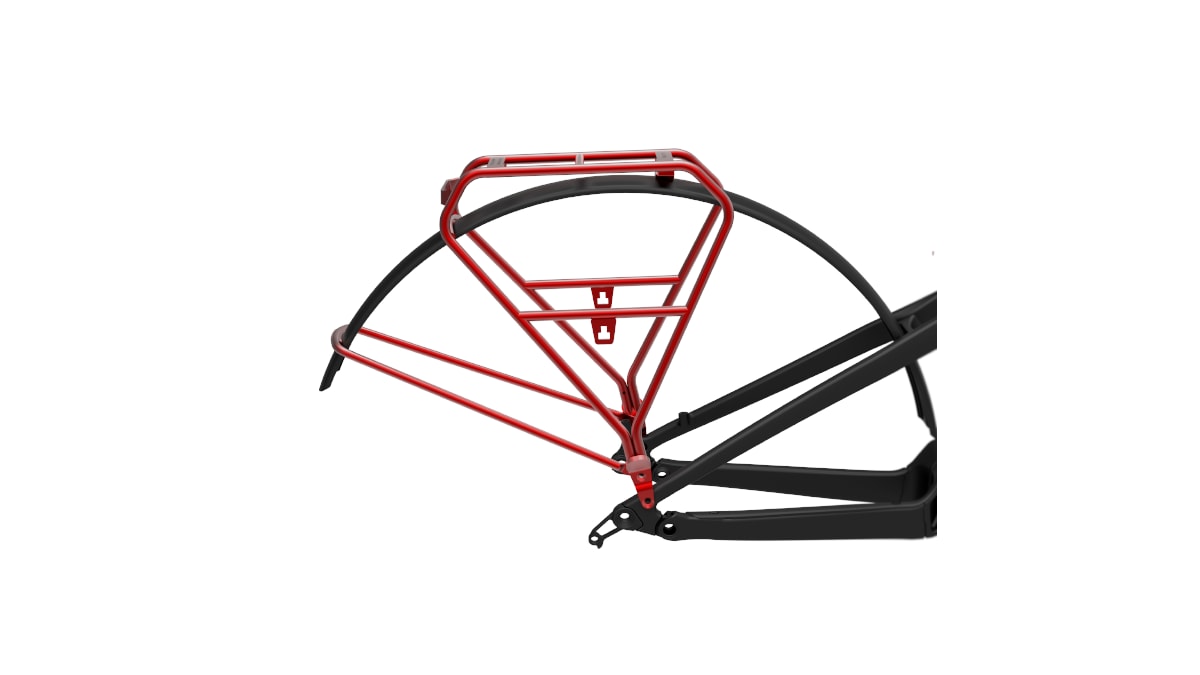

Rack & fenders

Feel free to install a rack and the corresponding fender set . The frame has dedicated fixation point s for a clean and reliable solution. Racks and fenders are available on the A ccessories page of the website .

Technical Specifications

Frame	Lumen eRIDE Carbon HMXIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemTQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Fork	FOX 34 Float Factory Air / Kashima FIT43-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offsetTapered steerer / Lockout / Reb. Adj.130mm travel
Travel	Front: 130mm / Rear: 130mm
Rear Shock	FOX NUDE 5T Factory EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendCustom large Air volume / DPS / Kashima / Reb. Adj.Travel 130-90-Lockout / T165X45mm
Remote System	SCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes
Headset	Syncros - Acros Angle adjust & Cable Routing HS SystemStainless, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Rear Derailleur	SRAM XX1 Eagle AXS 12 SpeedWireless Electronic Shift System
Shifters	SRAM Eagle AXS Rocker Controller
Brakes	Shimano XTR M9120 4 Piston Disc
Crankset	FSA Carbon crankset / 175mm / 34T
Chainguide	ethirteen / espec Slider
Chainring	Scott custom spider / SRAM Eagle 34T chainring
Handlebar	Syncros Fraser iC SL DC Carbon0° rise / back sweep 8° / mini Rise / 760mmSyncros Performance XC lock-on grips
Seatpost	FOX Transfer Factory Dropper Post Kashima31.6mm / S size 125mm / M size 140mmL ize 150mm / XL size 175mm
Seat	Syncros Tofino Regular 1.0Carbon rails
Chain	SRAM CN XX1 Eagle
Wheelset	Syncros Silverton SL2-30 CL full CarbonF: 15x110mm, R: 12x148mm / 30mm Tubeless ready rimDT Swiss 240 Ratchet EXP 36 / XD DriverSRAM TyreWiz / Syncros SL Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Cassette	SRAM XX1 XG1299 / 10-52 T
Extras	SRAM AXS PowerpackSyncros Fork Fender
Accessories	Syncros Eco SealantTransport Axle
Approx weight in KG	15.5 (Tubeless setup)
Approx weight in LBS	34.17 (Tubeless setup)
Drive Unit	TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery	TQ Internal 360Wh + Range Extender 160Wh
Display	TQ HPRBluetooth / ANT+ / Dedicated Smartphone app
Charger	TQ 100-240V-4A
Rotor	Front: RT-MT900 CL 180mm / Rear: RT-EM910 CL 180mm
Front Tire	Schwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Soft
Rear Tire	Schwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Grip
Max. System Weight	128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
