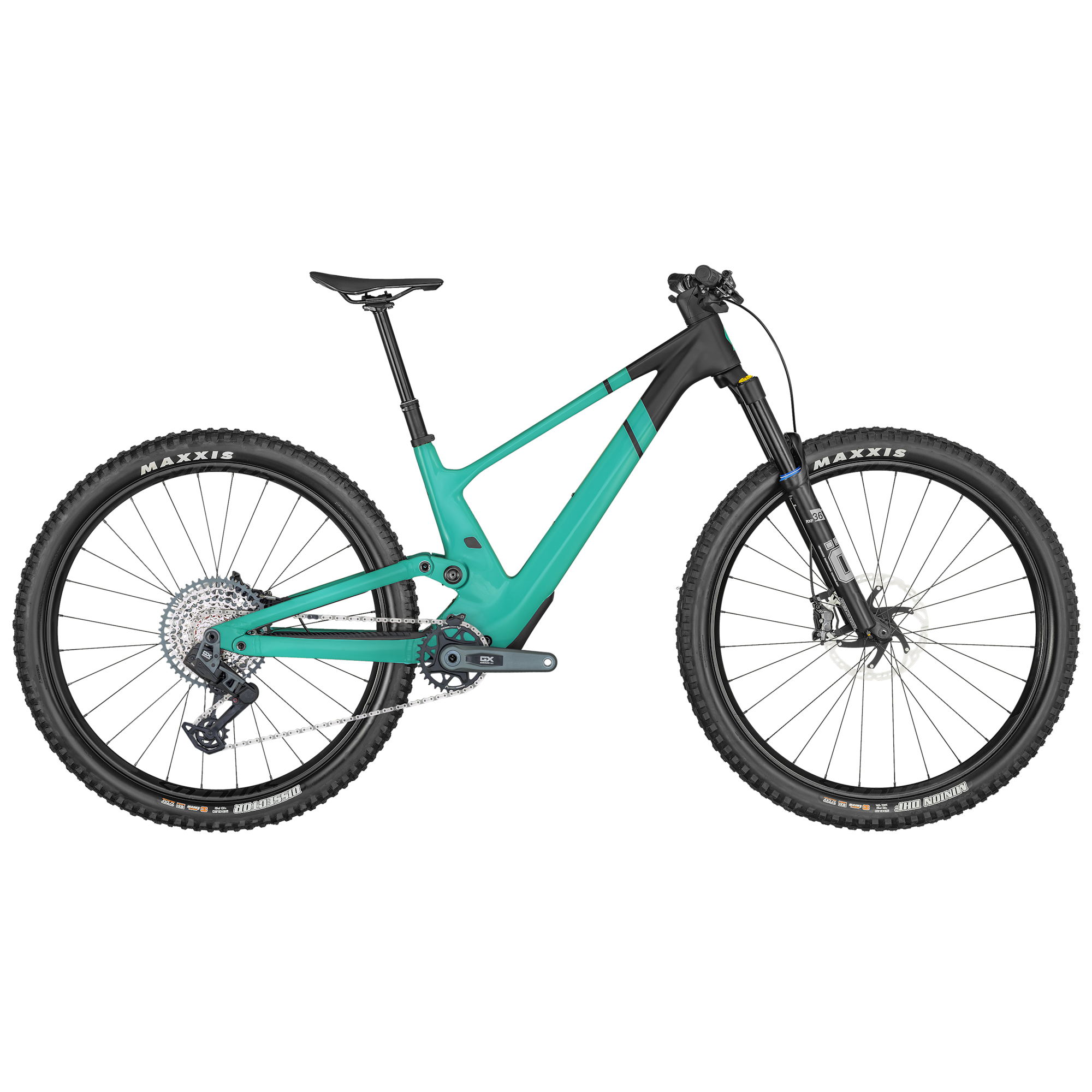

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
Please note that bike specifications are subject to change without prior notice
FrameGenius Carbon HMF Mainframe with Alloy 6061 SwingarmIntegrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline
ForkOhlins RXF36 m.2 AirTTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle44mm offset / tapered steerer160mm travel
Rear ShockFOX FLOAT X NUDE PE EVOL Piggy Back TrunnionSCOTT custom w. travel / geo adj.3 modes: Climb-Traction Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 150-100-Climb / T185X55mm
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM GX Eagle AXS Rocker Controller
CranksetSRAM GX Eagle TransmissionBash guard / DUB / 55mm CL / 32T
ChainguideSCOTT custom
BB-SetSRAM DUB PF 92 MTB Wide / shell 41x92mm
ChainSRAM CN GX Eagle Transmission
CassetteSRAM GX Eagle XS 1275 Transmission 10-52
BrakesShimano XT M8120 4 Piston Disc
RotorShimano SM-RT76 / 6 Bolt / 203/F and 180/R
HandlebarSyncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mmSyncros Endurance lock-on grips
SeatpostSyncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mmS size 140mm / M&L size 170mm / XL size 200mm
SeatSyncros Tofino 2.0 RegularCRMO rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
WheelsetSyncros Revelstoke 2.0 6 BoltF: 15x110mmR: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Leverwith 6mm AllenT30 and T25 Tools
Front TireMaxxis Minion DHF / 2.6" / 120TPI FoldableTubeless Ready / EXO 3C maxxTerra
Rear TireMaxxis Dissector / 2.6" / 60TPI FoldableTubeless Ready / EXO 3C maxxTerra
ExtrasSRAM AXS Powerpack
Approx weight in KG14.4 (Tubeless setup)
Approx weight in LBS31.75 (Tubeless setup)
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
