2025 RANGER SENSOR DRIVE
Couldn't load pickup availability
Need help choosing the right size?

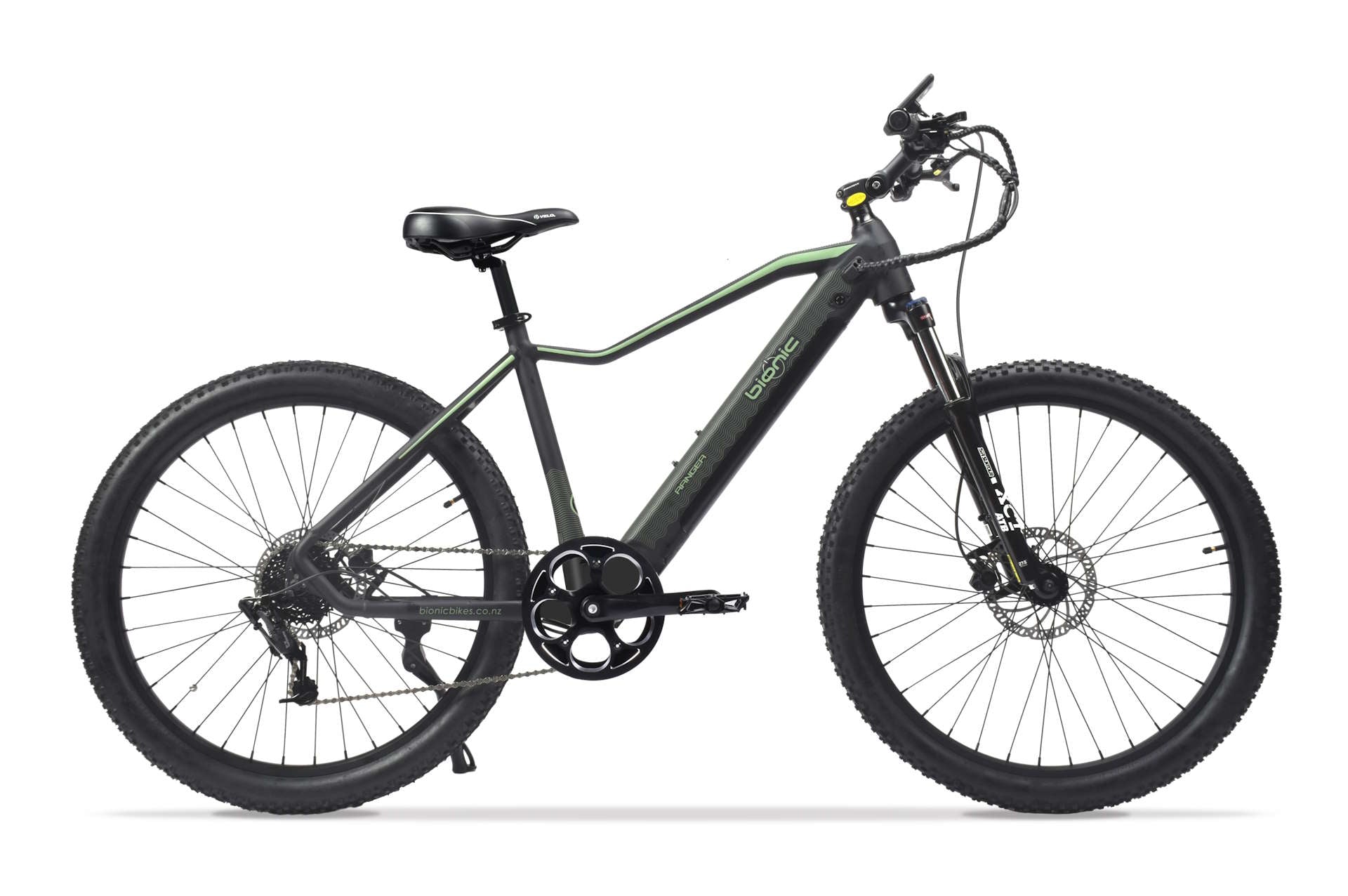

Bionic’s Ranger SensorDrive e-bike is tailored for up to Grade 3 trail riding, featuring a fully integrated battery with slim tube technology for performance and aesthetics.
The adjustable front stem ensures a comfortable, upright riding position, complemented by a wider seat. With Bionic’s SensorDrive system, experience smooth power delivery, secure handling, and the natural feel of a mid-drive from a hub drive motor.

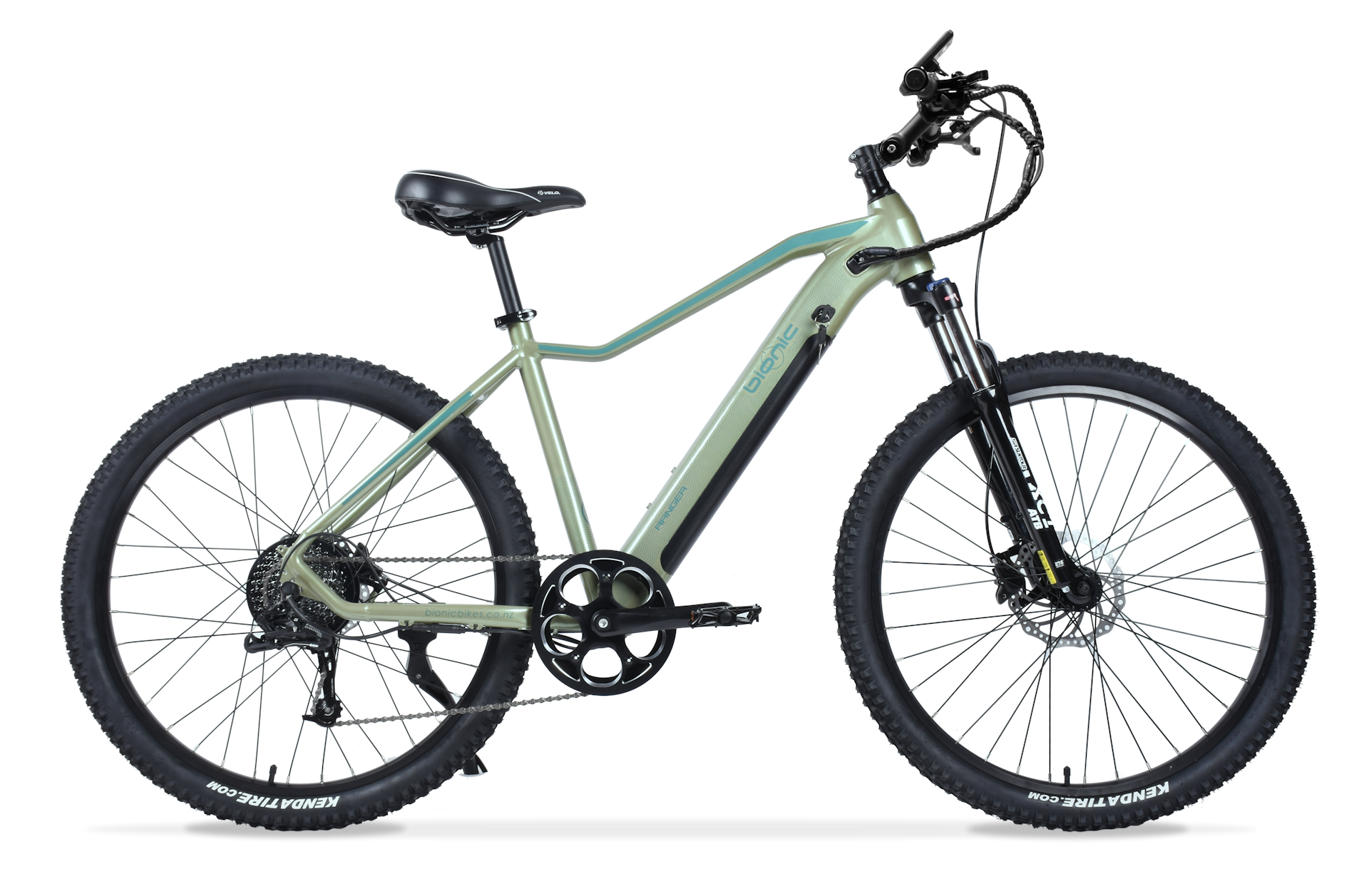

Choose your style with Matte Black or Gecko Green, blending functionality and design seamlessly. The Ranger SensorDrive e-bike offers the perfect combination of performance and style for your trail adventures.
| SPECIFICATIONS: | |
| Frame: | Alumuinium 6061-T6 (Aerospace grade) |
| Wheel Size: | 27.5” |
| Voltage: | 48V |
| Motor: | Bafang 300W (controlled) rear hub motor |
| Sensor: | SensorDrive system |
| Battery: | 504Wh Samsung cells |
| Range: | 45-90km subject to rider’s weight, terrain etc |
| Control: | LCD display with 5 levels of assist |
| Throttle: | Thumb throttle supplied as standard |
| Gearing: | SRAM X5 9 speed |
| Shifter: | SRAM index trigger |
| Brakes: | Shimano hydraulic with safety cut-out (180mm rotors) |
| Tires: | Kenda 27.5” x 2.35” tires |
| Forks: | SR Suntour XCT 100mm travel (with lock-out) |
| Cabling: | Internal - through frame |
| Weight: | 23.5kg |
