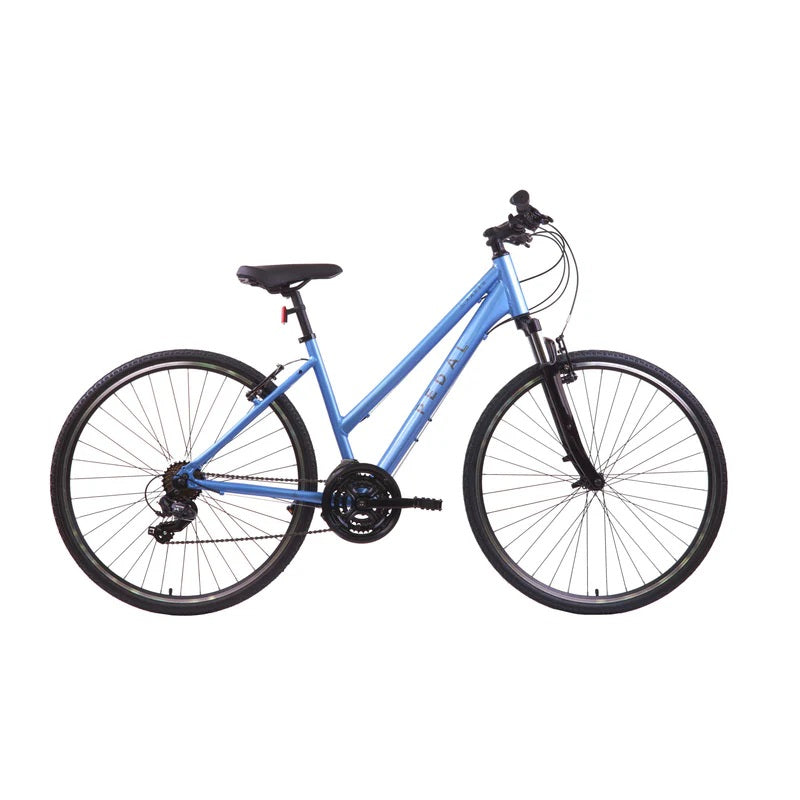

2025 PEDAL RAVEN 3 TRAPEZE
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Specifications
Please note - specifications subject to change without prior notice.
| BOTTOM BRACKET: | Sealed Cartridge BSA 68mm |
| BRAKES: | Alloy V-Brake w/63mm pad |
| CHAIN: | KMC 7 speed 116L |
| CHAINWHEEL: | 48T-38T-28T 170mm Steel w/Chain Guard |
| DERAILLEUR REAR: | Shimano TY300 7 speed |
| FORK: | MJ-701 Coil Fork |
| FRAME: | 6061 Alloy Hybrid Frame |
| FREEWHEEL: | 14-28T Index Freewheel Screw-on |
| GRIP: | XL-G78 Ergo Textured Rubber |
| HANDLEBAR: | Trapeze: 660mm /20mm Rise 31.8mm |
| HANDLEBAR STEM: | Alloy 80mm 31.8mm 7 degree Rise |
| HEADSET: | Sem-Integrated 44mm Loose Ball Bearing |
| HUBS: | FRONT: Alloy 100mm QR / REAR: Alloy 135mm QR Threaded |
| PEDALS: | Resin 9/16" Basic Platform Style |
| RIM: | 700c Double Wall Alloy w/36H Schrader Valve |
| SADDLE: | JW-1340 Wide Comfort Vynil w/Steel Rails |
| SEAT POST: | Alloy 27.2mm x 300mm Single Bolt |
| SPOKES: | 14G Steel Coated |
| TYRES: | J-166 Comfort J-166 Wire Bead 700 x 38c |
| WHEEL SIZE: | 700c |
