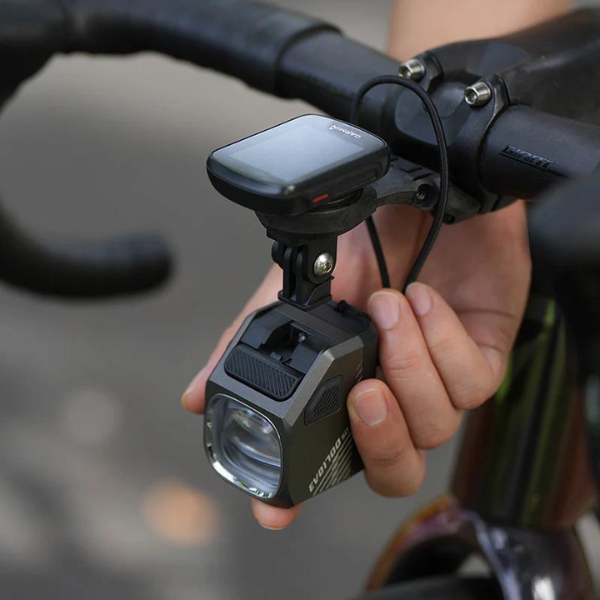

Packing an impressive output of 1700 lumens in an incredibly compact housing, the EVO 1700 is tailored specifically for daily commuting in urban settings.

Without the need for a remote control, the EVO 1700SD connects directly to your bike’s Shimano Di2 system (wireless unit).

But please note the light is NOT compatible with SHIMANO E-BIKE SYSTEMS.

You will need a mount for this light, suggest MJ6272

Effortlessly adjust your light settings through Shimano Di2 buttons, as accessible as shifting gears.

**Paring Guide:**Initial Paring: Single click any button on the shifters to activate the SHIMANO Di2 system, then long press the light button for 1 second until the indicator flashes blue to enter pairing mode. Position the light to the rear derailleur within 30 cm. The indicator is constantly blue for 3 seconds, confirming a successful pairing.

**Note:**Before pairing, ensure your SHIMANO Di2 system has at least two unassigned buttons available to fully utilize product features.

First Use:

The light will be locked, rapidly flashing red light when you press the buttons.

To Unlock: press and hold the power biutton for 3 seconds to unlock the light.

To lock the light, why? Traveling etc will not allow the light to be bumped and turn on the light.

To Lock: when the light is off, press and hold the power button for 3 seconds to enter locked mode. [The light will be locked when the red light is rapidly flashing when you press the buttons.

NOTE: After unlocking the light, reconnect it to the Shimano Di2 system to enable the control

Features:

• Max Output : 1700 LM
• Compatible with SHIMANO Di2 systemwireless unit)
• Unique combination of up-close low beam and far-reaching high beam
• Cut-Off Low Beam, glare-free for oncoming road users
• Robust Aluminum Housing
• Battery Source: 4000mAh Battery
• Lock Function
• Memory Function
• IPX6 Waterproof Rating

Specifications:

• Max Output: 1700 Lumens
• Max Runtime: 11 Hours
• Max Throw: 205 Meters
• Beam Intensity: 10520 CD
• light Source: High-efficiency LED
• Lens/Reflector Type: TIR optical lens
• Battery Source: 3.6V 4000mAh
• Charging Time: 5 hours (5V 1A)
• Body Material: Aluminum + Plastic
• Dimensions: 42 x 46 x 53 mm
• Weight: 51g
• Warranty: 2 years

Whats in the box:

• EVO1700SD Shimano Di2 Compatible Bike Light x 1
• USB-C charging cable x 1
• Tether x 1
• User manual x 1
• Magicshine APP user manual
