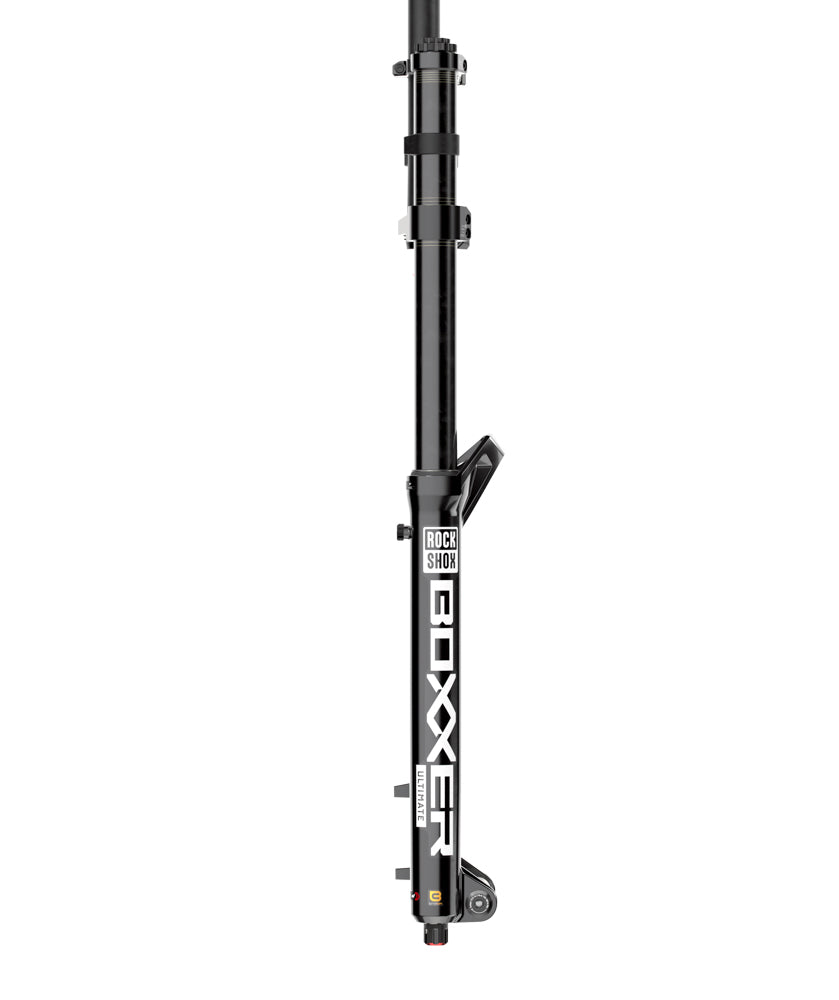

ROCKSHOX BOXXER ULTIMATE FORK
CONFIDENCE AND CONTROL. NO COMPROMISES.
Built on its high-performance legacy, the latest BoXXer was redesigned top to bottom to win races—or simply chase your buddies down the mountain. We could have made the stiffest fork possible, but we didn’t. We set out to deliver the best possible balance between stiffness, compliance, and comfort for maximum control. Two years of extensive development focusing on the critical blend of bending and torsional stiffness ratios resulted in the all-new 38mm BoXXer chassis.
After countless bike park laps, race runs, and lab test cycles, we found the perfect balance between ride quality, steering precision, and stiffness. It isn’t all about the numbers. It’s about giving you the control and feel you need to choose any line you like.
BoXXer’s 38mm stanchions are just the beginning. These upper tubes harmonize with the lowers to deliver ideal ride characteristics. Through extensive riding and testing, we tuned the stanchion wall thickness and lower leg architecture for stiffness that accepts steering input without beating up your hands. This way, you’re the one steering the fork, not the other way around.
SPECIFICATIONS
| Wheel Size |
27.5", 29" |
| Travel |
200mm |
| Damper Type |
Charger 3 RC2 with Buttercups |
| Fork Offset |
52mm |
| Colour |
BoXXer Eletric Red - Gloss, Gloss Black |
| Axle |
20x110mm BOOST |
| Upper Tube Type |
38mm Aluminium |
| Crown (OD) |
42mm |
|
|
FEATURES
- NEW 38mm chassis designed to meet the needs of the world’s fastest racers with balanced stiffness and ride quality.
- NEW DebonAir+ twin tube air spring strikes the perfect balance between butter-smooth small bump feel, added support throughout the travel, and taller ride height for confidence when things get steep.
- NEW Signature colorway BoXXer Electric Red with an all-new graphics package.
- NEW RockShox premium fender compatibility (RockShox Bolt-On Fender included with purchase)
- NEW Lightweight machined and anodized crown for premium looks and durability.
- Short and tall crown options available to accommodate different head tube lengths.
- Charger 3 damper tuned for BoXXer’s updated chassis and spring. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This allows the rider to tune to perfection with every click.
- ButterCups block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue, leaving you feeling fresh with more control.
- Ultra-low-friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel.
- Maxima Plush damping fluid reduces friction and silences damper noise.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
|
